Instrument Panel Center Trim Panel Replacement

Instrument Panel Center Trim Panel Replacement

Removal Procedure

1. Loosen and remove the center console for access to the center trim panel. Refer to Console Replacement.

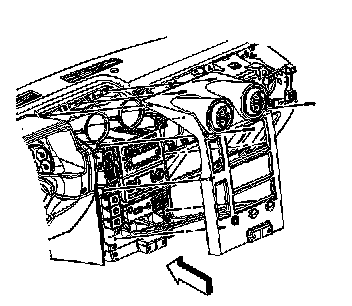

2. Remove the screws that hold the trim panel to the I/P.
3. Remove the trim from the tabs in the I/P.

Installation Procedure

1. Align the trim pad with the I/P tabs.






Notice: Refer to Fastener Notice.

2. Fasten the trim panel to the I/P.

Tighten the screws to 2 N.m (18 lb in).
