Instrument Panel Center Support Bracket Replacement

Instrument Panel Center Support Bracket Replacement

Removal Procedure

1. Remove the center console from the center console bracket.
2. Remove the extension panel from the instrument panel (I/P).

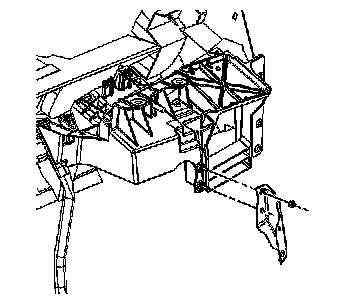

3. Remove the bolt holding the bracket assembly - I/P center.




4. Remove the bracket from the I/P and floor.

Installation Procedure






Notice: Refer to Fastener Notice.

1. Align the center bracket with the I/P and floor, then bolt the bracket in place.

Tighten the bolt to 25 N.m (18 lb in).

2. Install the extension panel the I/P.
3. Install the center console to the center console bracket.
