Instrument Panel Accessory Trim Plate Replacement - Right Side

Instrument Panel Accessory Trim Plate Replacement - Right Side

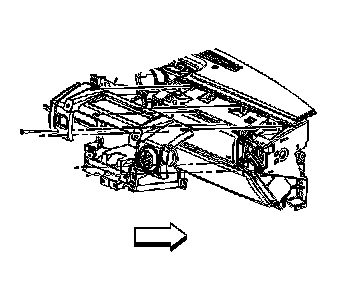

Removal Procedure




1. Remove the instrument panel (I/P) compartment.
2. Remove the I/P assist handle.
3. Remove the screws that hold the trim panel to the I/P.
4. Remove the trim from the tabs in the I/P.

Installation Procedure




1. Align the trim pad with the I/P substrate tabs.

Notice: Refer to Fastener Notice.

2. Install the trim panel screws.

Tighten the screws to 2 N.m (18 lb in).

3. Install the I/P compartment.
4. Install the I/P assist handle.
