Storage Bin Door and Glasses Storage Door Replacement

Storage Bin Door and Glasses Storage Door Replacement

Removal Procedure




1. Remove the overhead console from the headliner.

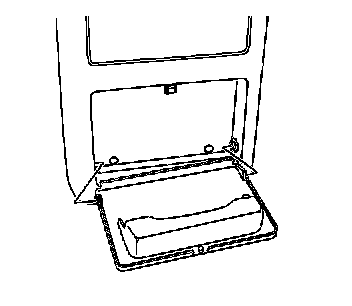

2. Remove the broken door from the headliner.

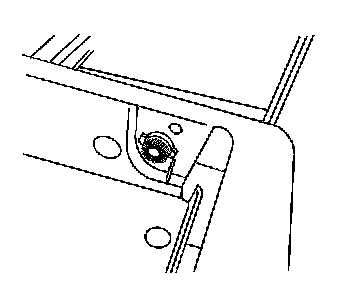

3. Remove the broken gear assembly from the console.

Installation Procedure




1. Install the new door to the gear assembly overhead console.




2. Install the new door to the overhead console.

Notice: Refer to Fastener Notice.

3. Attach the overhead console to the headliner.




Tighten the screws to 2 N.m (18 lb in).
