Roof Console Replacement (Short Length)

Roof Console Replacement (Short Length)

Removal Procedure

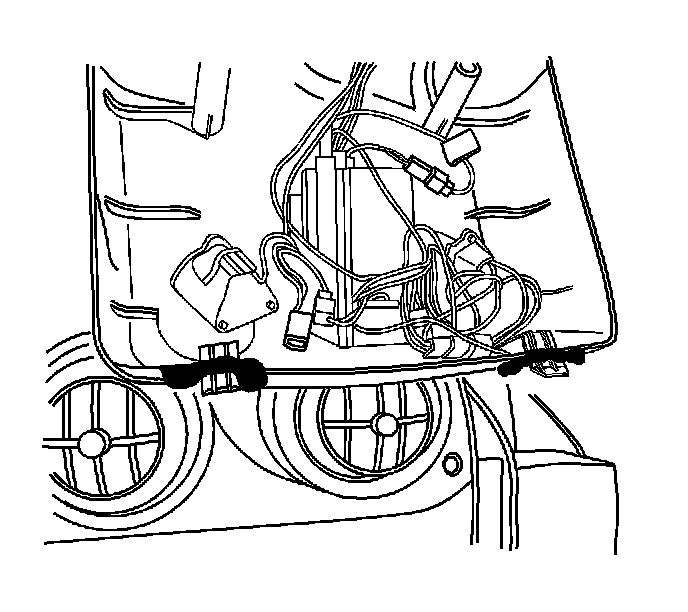

Important: When removing some overhead consoles, the rear retaining tabs may be hot glued to the headliner.




1. Remove the console roof screws.




2. If front tabs are glued to headliner, gently wiggle console to loosen console tabs from headliner.
3. Disconnect the electrical connectors.
4. Remove the console.

Installation Procedure

1. Connect the electrical connectors.

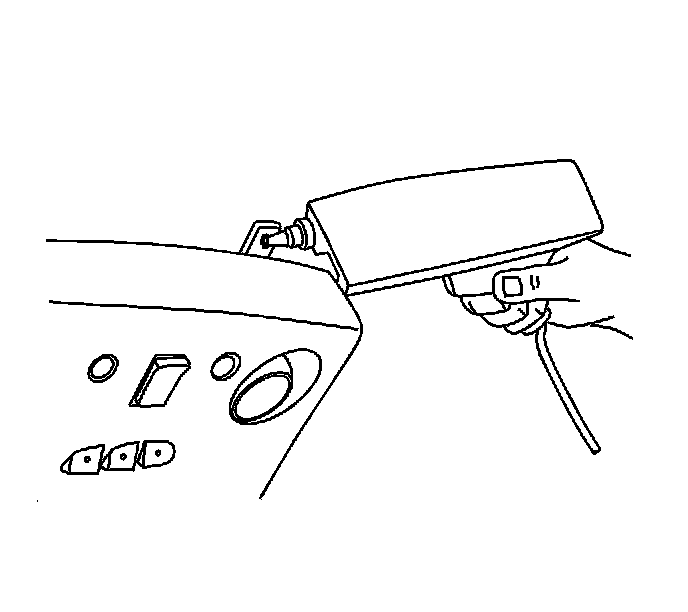

2. Using a hot melt glue gun, run a bead of glue on tabs and align the console to the headliner holes.






Notice: Refer to Fastener Notice.

3. Install the console roof screws.

Tighten the screws to 2 N.m (18 lb in).

4. Check for console operation.
