Front Floor Console Compartment Door Latch Replacement

Front Floor Console Compartment Door Latch Replacement

Removal Procedure

1. Remove the console compartment door from the center console.
2. Place the compartment door on a work bench.

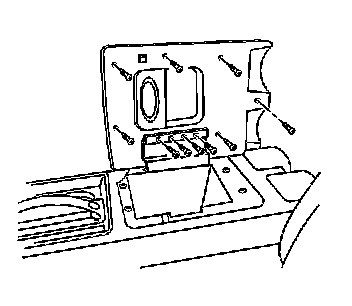

3. Remove the screws from the door inside panel.
4. Remove the inside panel to gain access to the latch compartment.
5. Remove the screws retaining the latch to the console compartment door.
6. Remove the latch assembly.

Installation Procedure

1. Install the latch by pressing inwards until it is seated.

Notice: Refer to Fastener Notice.

2. Install the latch screws.

Tighten the latch screws to 1.6 N.m (14 lb in).

3. Install the inside panel.




4. Install the console door inner screws.

Tighten the screws to 1.6 N.m (14 lb in).




5. Inspect the top compartment door operation.

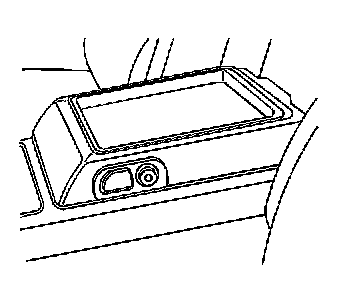

6. Install the compartment door to the console.
