Console Storage Bin Replacement

Console Storage Bin Replacement

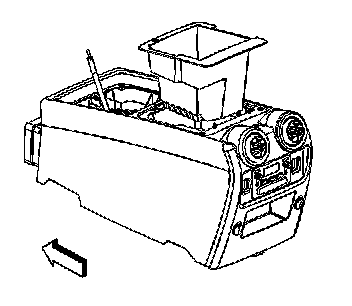

Removal Procedure




1. Remove the screws that hold storage bin in place.
2. Remove the storage bin from the center console.

Installation Procedure

Notice: Refer to Fastener Notice.




1. Install the storage bin.
2. Install the storage bin screws.

Tighten the screws to 2 N.m (18 lb in).
