Console Shift Lever Bezel Replacement

Console Shift Lever Bezel Replacement

Removal Procedure

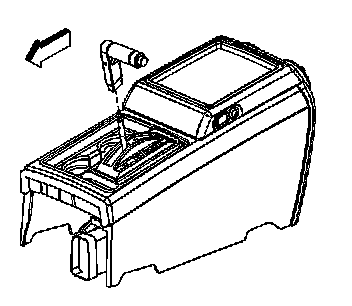

1. Loosen the locking screw that fastens the shift lever to the shifter.
2. Remove the shifter.

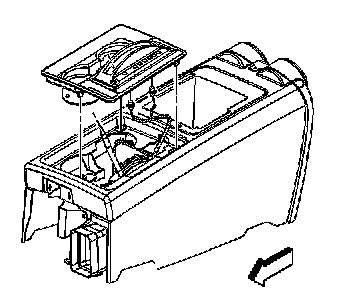

3. Using a flat-bladed tool, pry up on the bezel to release the clips.
4. Disconnect the PRNDL lamps from the bezel.
5. Remove the bezel.

Installation Procedures




1. Connect the lamps to the bezel.
2. Align the bezel to the center console.
3. Push the bezel firmly into place to engage the clips.






Notice: Refer to Fastener Notice.

4. Install shift handle to shifter and use hex nut to fasten in place.

Tighten the nut to 1.6 N.m (14 lb in).
