Console Replacement

Console Replacement

Removal Procedure

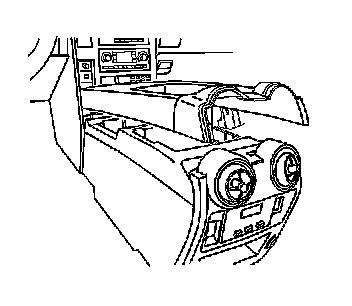

1. Remove the console upper trim plate.
2. Disconnect the console electrical connector.

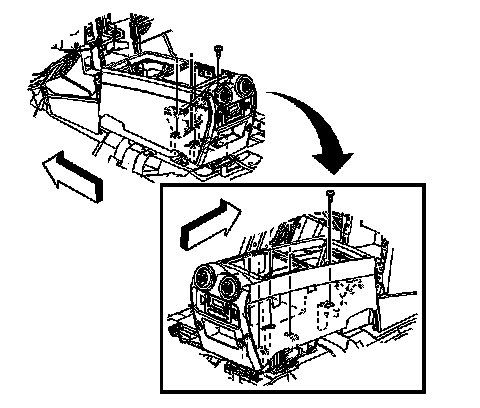

3. Remove the bolts holding center console to center console bracket.




4. Remove the center console.

Installation Procedure






Important: Make sure HVAC duct is aligned with center console.

1. Align center console to center console bracket and route the electrical wiring through console.
2. Connect the console electrical connector.






Notice: Refer to Fastener Notice.

3. Install the center console to center console bracket.
4. Install the center console bolts.

Tighten the bolts to 9 N.m (80 lb in).




5. Install the top panel to center console.
