Center Console End Panel Replacement

Center Console End Panel Replacement

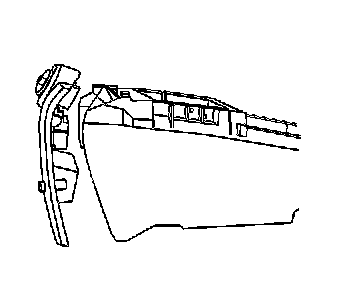

Removal Procedure

1. Remove screws that hold end panel to center console.




2. Disconnect electrical connectors to end panel.




3. Remove console end panel.

Installation Procedure




1. Connect electrical connectors to console end panel.

Notice: Refer to Fastener Notice.




2. Install the center console end panel.
3. Install the center console end panel screws.

Tighten the screws to 1.6 N.m (14 lb in).
