Rear Floor Panel Carpet Replacement

Rear Floor Panel Carpet Replacement

Removal Procedure

Caution: Refer to Replacement Carpet Caution.

1. Remove the rear seat.
2. Remove the rear door sill trim plates.
3. Remove the liftgate door sill trim plate.
4. Remove the trim panels for the rear quarter.

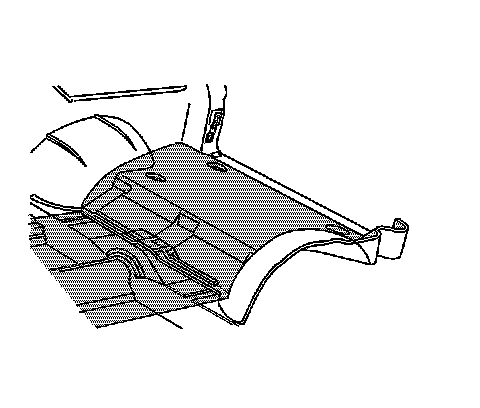

5. Remove the rear carpet from the vehicle.

Installation Procedure






Caution: Refer to Replacement Carpet Caution.

1. Install the rear carpet to the vehicle.
2. Install the liftgate door sill trim plate.
3. Install the trim panels for the rear quarter.
4. Install the door sill trim plates.
5. Install the rear seat.
