Lower Grille Replacement

Lower Grille Replacement

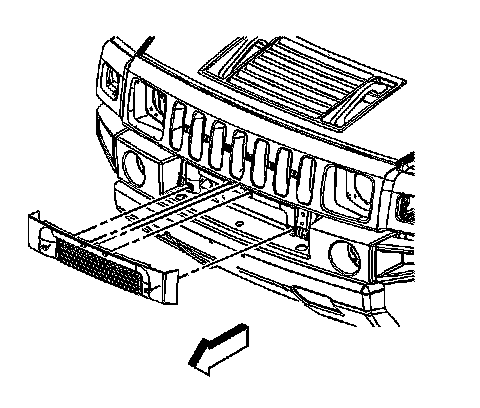

Removal Procedure




1. Apply outward pressure to the grille to disengage the retaining clips.
2. Remove the lower grille from the vehicle.

Installation Procedure




1. Install the lower grille to the vehicle.
2. Apply inward pressure to the grille to engage the retaining clips.
