Grille Replacement

Grille Replacement

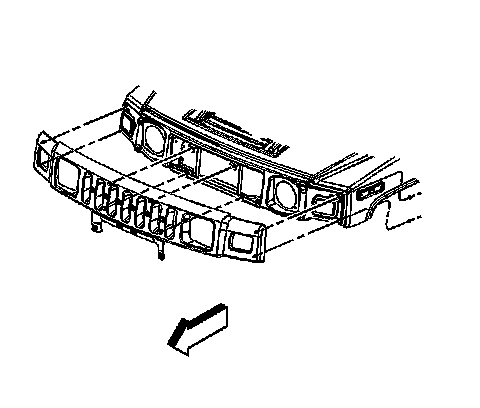

Removal Procedure




1. Open the hood.
2. Remove the nuts retaining the grille to the hood.
3. Apply outward pressure to the grille to disengage the retaining clips.
4. Remove the grille from the vehicle.

Installation Procedure




1. Install the grille to the vehicle.
2. Line up the studs to the mounting holes in the hood.
3. Apply inward pressure to the grille to engage the retaining clips.

Notice: Refer to Fastener Notice.

4. Install the nuts that are retaining the grill to the hood.

Tighten the nuts to 9 N.m (80 lb in).

5. Close the hood.
