Trunk / Liftgate Lock: Service and Repair

Liftgate Lock Plate and Rod Replacement

Removal Procedure




1. Remove the liftgate trim panel.
2. Disconnect the lock actuator electrical connection.

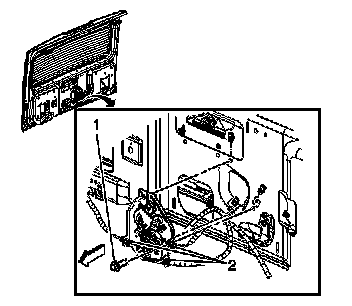

3. Disconnect the latch control cables by releasing the retainers (2) and removing the cable ends from the cups. Note the routing.
4. Remove the fasteners (1) retaining the control assembly to the liftgate.
5. Remove the lock plate assembly from the liftgate.

Installation Procedures





Notice: Refer to Fastener Notice.

1. Position the lock plate assembly in place on the liftgate, and install the fasteners (1) retaining the control assembly to the liftgate.

Tighten the fasteners to 9 N.m (80 lb in).

2. Connect the latch control cables (2) to the control assembly by placing the cable ends in their cups and securing the retainers. Note the proper routing.
3. Connect the lock actuator electrical connector.
4. Inspect for proper operation.
5. Install the liftgate trim panel.
