Power Trunk / Liftgate Lock Actuator: Service and Repair

Liftgate Lock Actuator Replacement

Removal Procedure

1. Remove the liftgate trim panel.
2. Disconnect the lock actuator electrical connector.






Important: Note location of arm prior to removal.

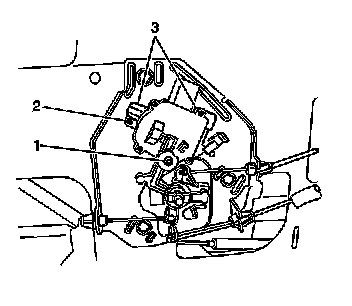

3. Remove the fastener (1) retaining the control arm to the actuator.
4. Remove the fastener (2) retaining the actuator to control arm assembly plate,
5. Slide the actuator upward, and remove the actuator from the plate.

Installation Procedure




1. Align the tabs on the actuator to the grooves (3) on the control assembly plate, and slide the actuator down into position.

Notice: Refer to Fastener Notice.

2. Install fastener (2) retaining the actuator to the control assembly plate.

Important: Install the control arm in the position noted during removal.

3. Install fastener (1) retaining the control arm to the actuator.

Tighten the fasteners to 2 N.m (18 lb in).

4. Install the liftgate trim panel.

Tighten the fastener to 2 N.m (18 lb in).
