Hood Support Cable Replacement

Hood Support Cable Replacement

Removal Procedure

1. Open the hood.

Caution: Refer to Hood Hold-Open Device Caution.

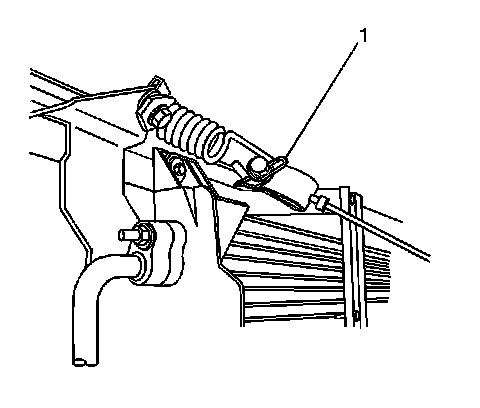

2. Remove the pin retaining the lower section of the cable to the hood by removing the retaining clip (1).




3. Remove the pin retaining the upper section of the cable to the hood by removing the retaining clip (1).
4. Remove the cable from the vehicle.

Installation Procedure




1. Attach the lower section of the hood support cable to the hood by inserting the pin into the cable and installing the retaining clip (1).




2. Attach the upper section of the hood support cable to the vehicle by inserting the pin into the cable and installing the retaining clip (1).
3. Close the hood.
