Hood Primary Latch Striker Replacement

Hood Primary Latch Striker Replacement

Removal Procedure

1. Open the hood.

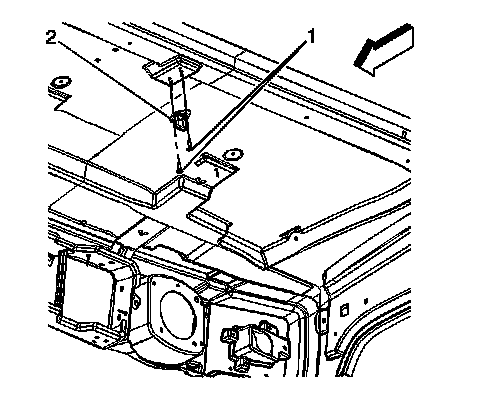

2. Remove the fasteners (1) retaining the striker (2) to the hood.
3. Remove the striker from the hood.

Installation Procedure




1. Align the hood latch striker to the hood.

Notice: Refer to Fastener Notice.

2. Install the fasteners (1) retaining the striker to the hood.

Tighten the fasteners to 9 N.m (80 lb in).

3. Close the hood and check for proper alignment
