Hood Hinge: Service and Repair

Hood Hinge Replacement

Removal Procedure

Caution: Refer to Hood Hold-Open Device Caution.

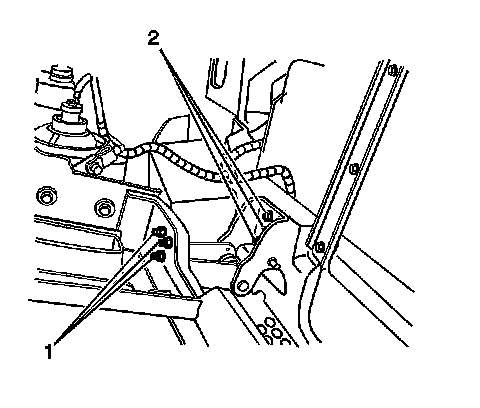

1. With the hood properly supported, remove the nuts (1) retaining the hood to the hinge.
2. With the hood still supported, remove the bolts (2) retaining the hinge to the front bumper support.
3. Remove the hinge.
4. With the aid of an assistant, carefully close the hood.

Installation Procedure




1. With the hood properly supported, position the hinge to the front bumper support.

Notice: Refer to Fastener Notice.

2. Install the bolts (2) retaining the hinge to the front bumper support.

Tighten the bolts to 25 N.m (18 lb ft).

3. Install the nuts (1) retaining the hinge to the hood.

Tighten the nuts to 18 N.m (13 lb ft).

4. Adjust the hood, if necessary.
