Fuel Tank Filler Pipe Housing Replacement (ND1)

Fuel Tank Filler Pipe Housing Replacement (ND1)

Removal Procedure




1. Open the fuel filler door.

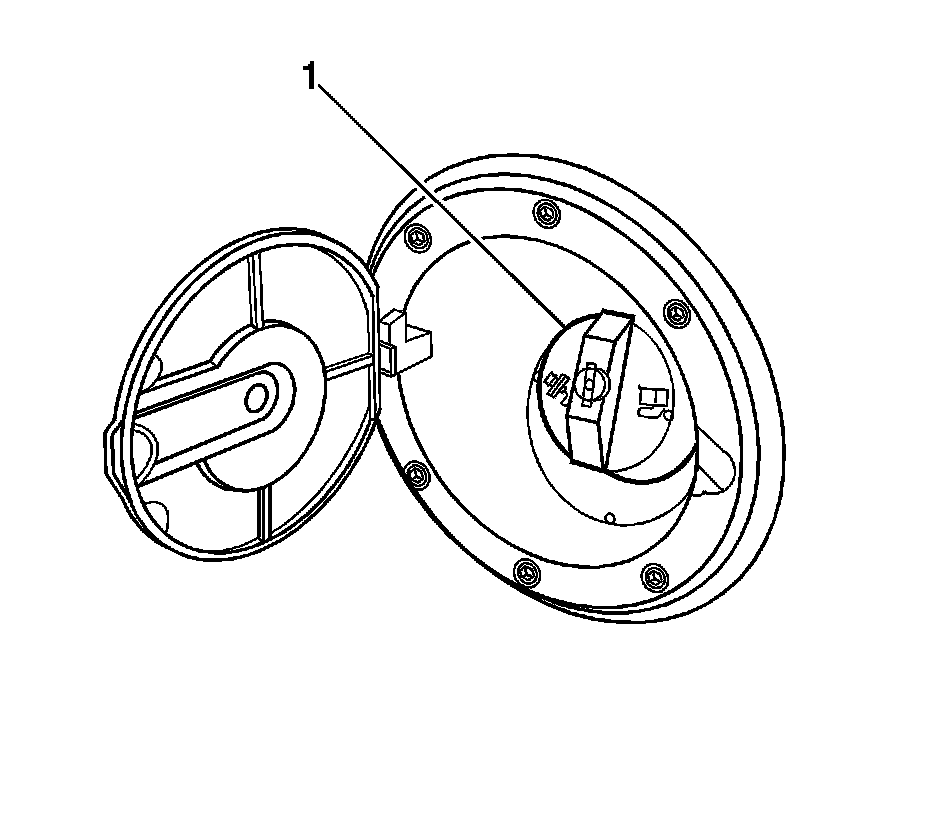

2. Remove the fuel filler cap in order to access the pocket screws.
3. Remove the fuel pocket to filler neck screws.
4. Remove the fuel filler pocket with door from the body side quarter panel.
5. Remove the allen screws only if the gasket seal needs replacing.

Installation Procedure




1. Position the fuel pocket to the fuel fill neck.

Notice: Refer to Fastener Notice.

2. Install the 3 screws.

Tighten the screws to 6 N.m (53 lb in).

3. Install the fuel filler cap.
4. Close the fuel filler door.
