Fuel Tank Filler Pipe Housing Replacement (BASE)

Fuel Tank Filler Pipe Housing Replacement (BASE)

Removal Procedure




1. Remove the fuel filler cap (2) and disengage the tether clip (3) from the pocket (1).




2. Remove the screws (1) securing the pocket to the filler neck (3).




3. With the screws removed, rotate the pocket (1) 1/8 turn counterclockwise in order to release the pocket from the body quarter panel.
4. Remove the filler pocket from the vehicle.

Installation Procedure

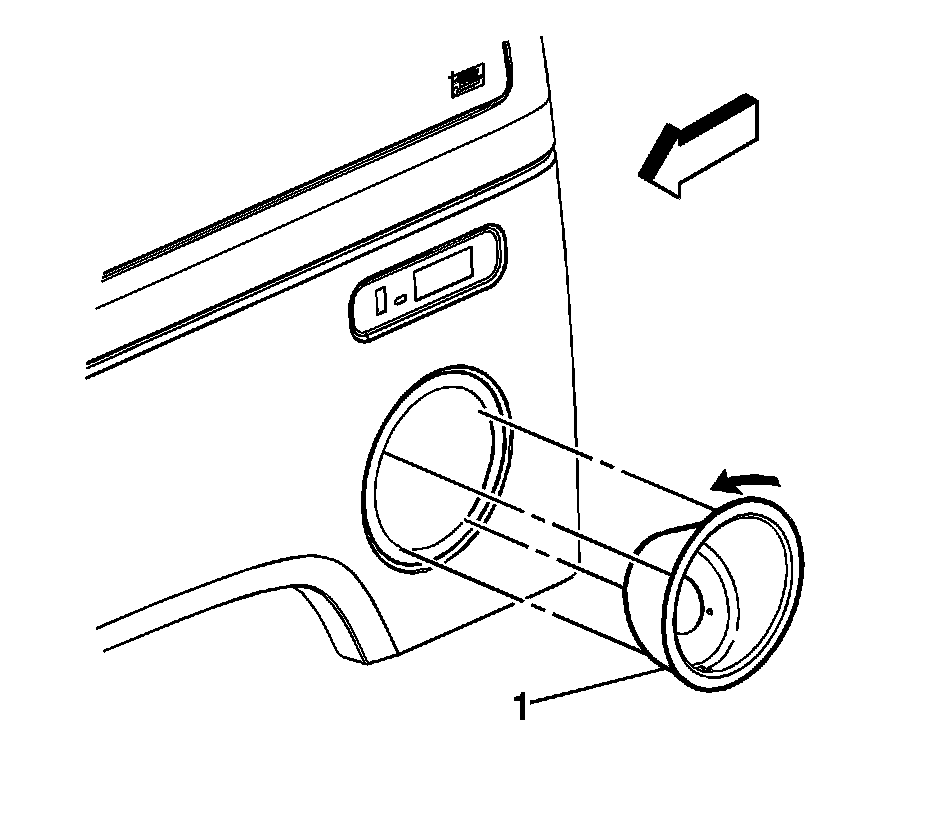

1. Position the filler pocket to the body quarter panel opening.




2. Rotate the pocket (1) 1/8 turn clockwise in order to secure to the body quarter panel.






Notice: Refer to Fastener Notice.

3. Install the screws (1) into the pocket (2) in order to secure the pocket to the filler neck (3).

Tighten the screws to 6 N.m (53 lb in).

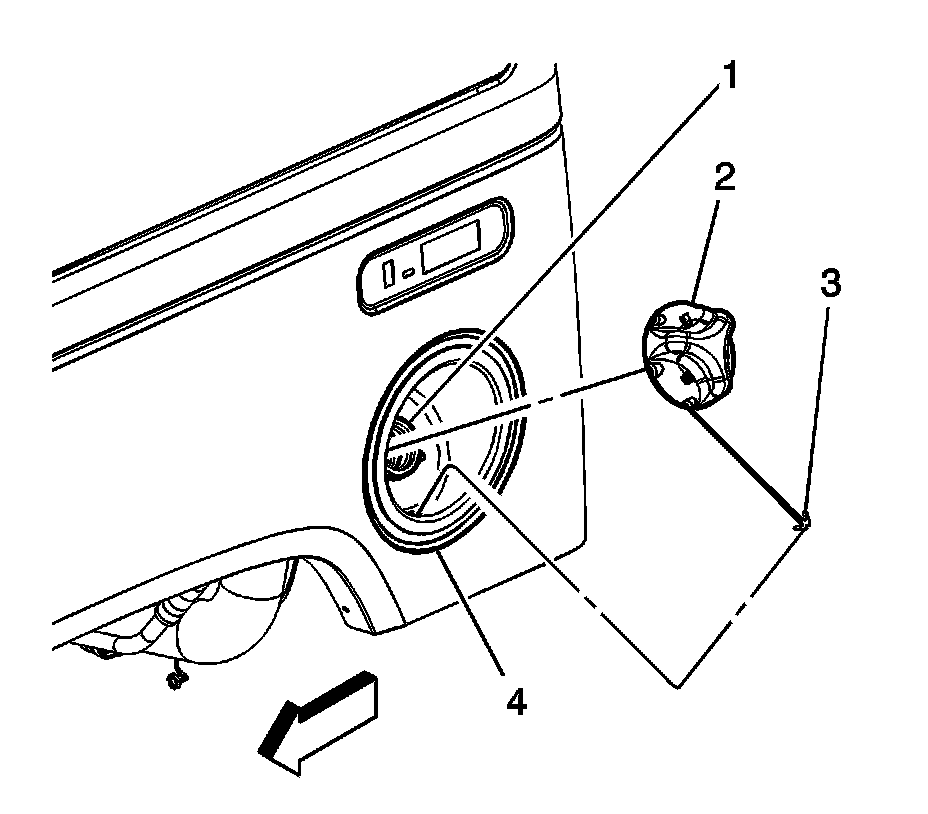

4. Attach the fuel cap tether (3) to the fuel fill pocket (4).
5. Secure the fuel fill cap (2) to the fuel fill neck (1).
