Campaign - Driver's Door Outside Handle/Lock Replacement
Bulletin No.: 07128Date: May 17, 2007
SERVICE UPDATE
Subject:
07128 - Service Update for Inventory Vehicles Only - Driver's Outside Door Handle/Lock Housing Crack - Expires September 30, 2007
Models:
2007 HUMMER H2
THIS SERVICE UPDATE INVOLVES VEHICLES IN DEALER/RETAILER INVENTORY ONLY AND WILL EXPIRE SEPTEMBER 30, 2007.
Purpose
This bulletin provides a service procedure to replace the driver's outside door handle/lock assembly on certain 2007 model year HUMMER H2 vehicles. The housing around the door lock cylinder on some of these vehicles may fracture.
This service procedure should be completed on involved vehicles currently in dealership inventory as soon as possible but no later than September 30, 2007, at which time this bulletin will expire.
Vehicles Involved
A list of involved vehicles currently in dealer inventory is available on the "Service Update Bulletin Information" link under the "Service" tab in DealerWorld (US) or attached to the Dealer Communication (Canada) used to release this bulletin.
Dealers are to confirm vehicle eligibility prior to beginning repairs by using the GM Vehicle Inquiry System (GMVIS).
Parts Information

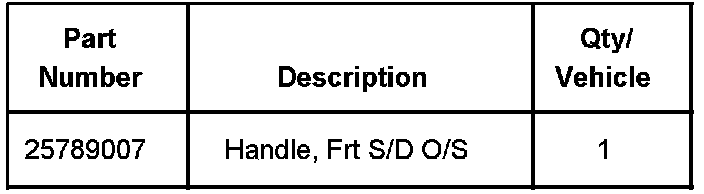

Parts required to complete this service update are to be obtained from General Motors Service and Parts Operations (GMSPO). Please refer to your "involved vehicles listing" before ordering parts. Normal orders should be placed on a DRO = Daily Replenishment Order. In an emergency situation parts should be ordered on a CSO = Customer Special Order.
Service Procedure
Removal Procedure
Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement in SI.
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement in SI.
Remove the window. Refer to Front Side Door Window Replacement in SI.

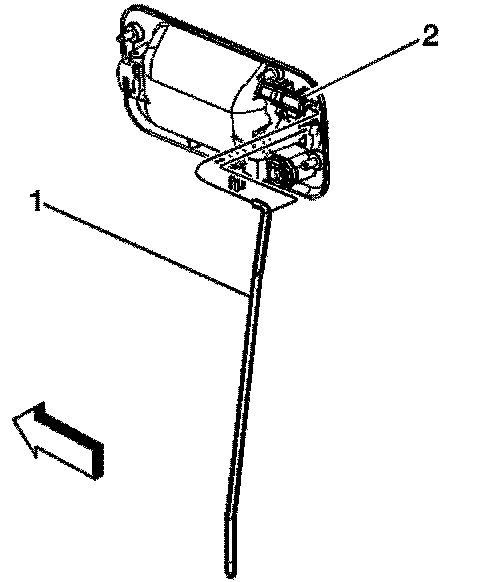

Disconnect the outside door handle rod (1) by releasing the retaining clip (2).

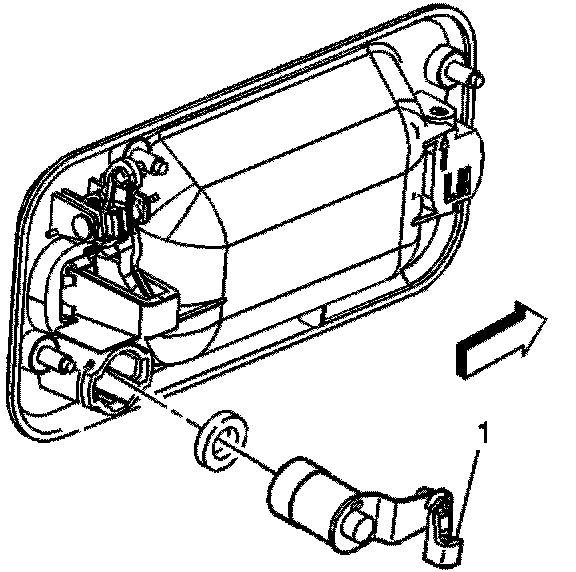

Disconnect the lock cylinder rod (1) by releasing the retainer clip.
Apply a piece of masking tape across the door handle, on the outside of the door, to secure the handle while removing the fasteners.

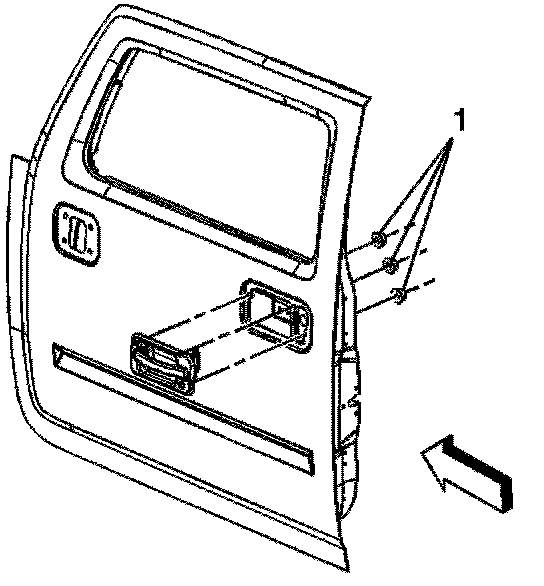

Remove the 3 nuts (1) retaining the door handle. Remove the door handle.
Position the door handle in place on the door.
Refer to Fastener Notice in Cautions and Notices in SI.

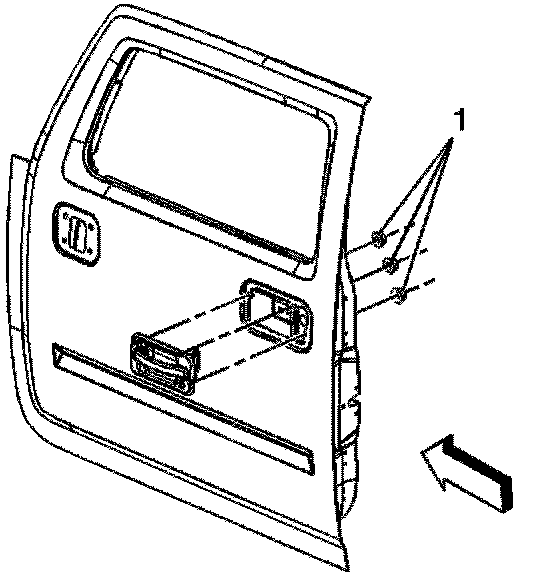

Install the 3 nuts (1) that retain the door handle to the door.
Tighten
Tighten the nuts to 9 N.m (80 lb in).

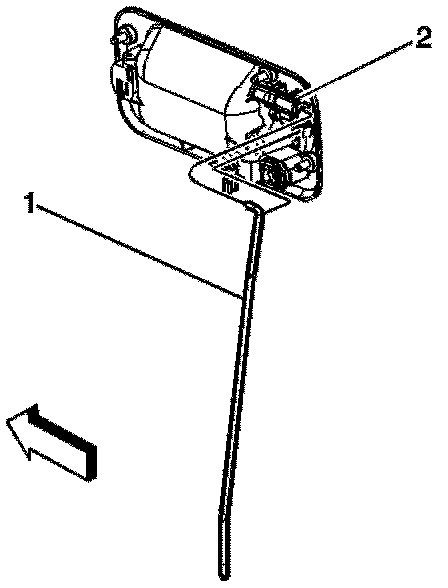

Connect the outside door handle rod (1) by securing the retention clip (2).

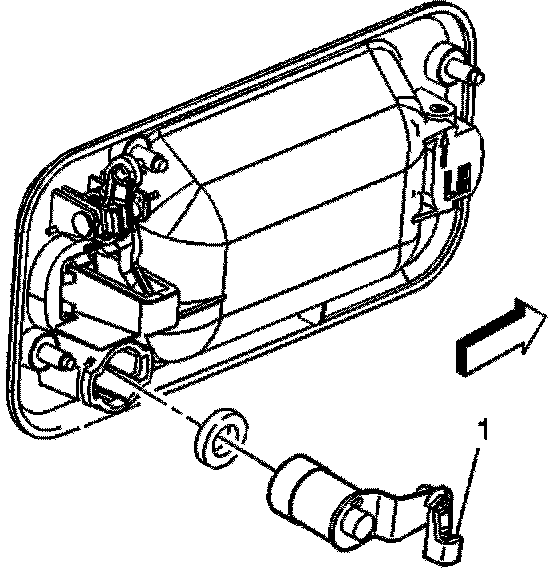

Connect the lock cylinder rod by securing the retainer clip (1).
Install the window. Refer to Front Side Door Window Replacement in SI.
Install the water deflector. Refer to Front Side Door Water Deflector Replacement in SI.
Install the door trim panel. Refer to Front Side Door Trim Replacement in SI.
Operate the door handle to check for proper operation.
Claim Information

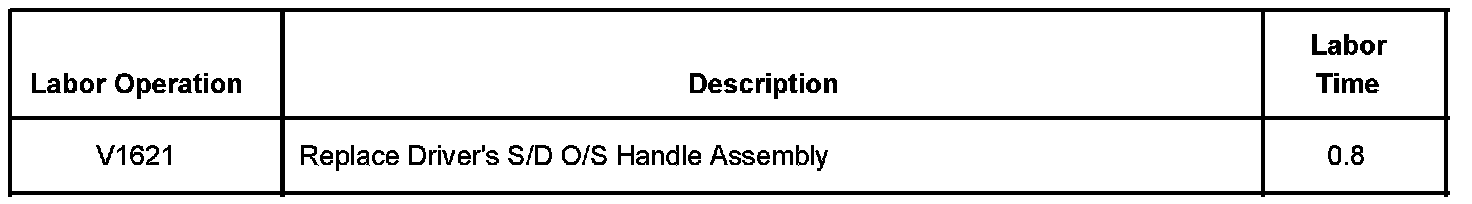

For vehicles repaired under this service update, use the table.
