Front Door Striker: Service and Repair

Door Striker Replacement

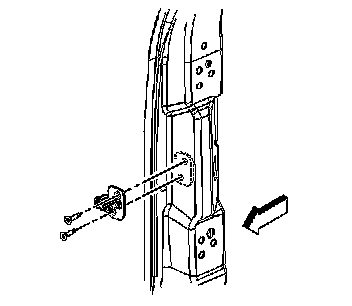

Removal Procedure

1. Mark the striker position with a grease pencil prior to removal, to retain proper alignment.
2. Open the door.




3. Remove the fasteners retaining the striker to the door frame.
4. Remove the striker.

Installation Procedure




1. Align the striker with the alignment marks made with the grease pencil.

Notice: Refer to Fastener Notice.

2. Install the fasteners retaining the striker to the door frame.

Tighten the fasteners to 27 N.m (20 lb ft).

3. Operate the door to check for proper operation and alignment.
