Front Door Limiter: Service and Repair

Door Check Link Replacement

Removal Procedure

1. Open the door.
2. Remove the door trim panel.
3. Remove the water deflector.

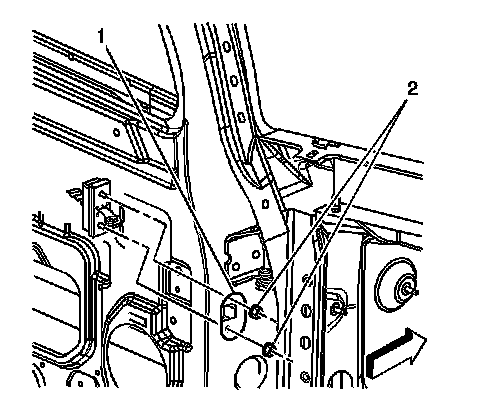

4. Remove the rubber grommet in the door check link opening (1).
5. Remove the 2 nuts (2) retaining the check link to the door.

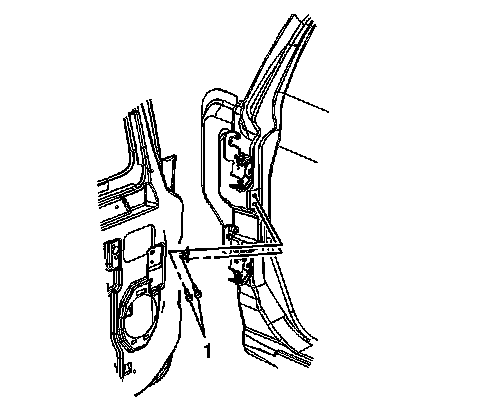

6. Remove the 2 fasteners (1) retaining the check link to the vehicle.
7. Remove the check link.

Installation Procedure

1. Place the check link in position in the door.






Notice: Refer to Fastener Notice.

2. Install the nuts (2) that retain the check link to the door.

Tighten the nuts to 9 N.m (7 lb ft).

3. Replace the rubber grommet in the door check link opening (1).




4. Install the fasteners (1) that retain the check link to the vehicle.

Tighten the fasteners to 9 N.m (7 lb ft).

5. Install the water deflector.
6. Install door trim panel.
