Front Door Hinge: Service and Repair

Front Side Door Hinge Replacement

Removal Procedure

Important: To retain proper alignment, properly support the door and replace the hinges one at a time if possible.




1. Open the door.
2. Mark the hinge location with a grease pencil prior to removal.

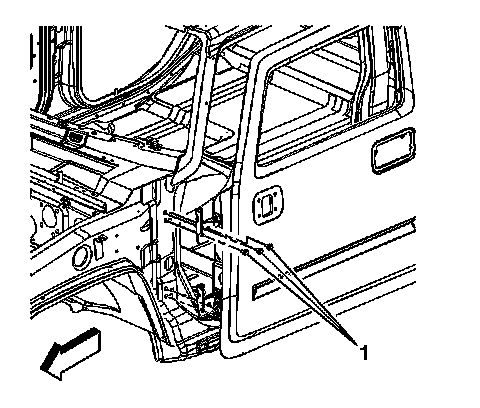

3. Remove the 3 fasteners (1) retaining the hinge to the vehicle.




4. Remove the 2 fasteners (1) retaining the hinge to the door.
5. Remove the hinge.

Installation Procedures

1. With an assistant, align the hinge to the alignment marks made with the grease pencil.






Notice: Refer to Fastener Notice.

2. Install the fasteners (1) retaining the hinge to the vehicle.

Tighten the fasteners to 25 N.m (18 lb ft).




3. Install the fasteners (1) retaining the hinge to the door.

Tighten the fasteners to 25 N.m (18 lb ft).

4. Adjust the door if necessary. Refer to Front Side Door Adjustment.
