Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Body and Frame >> Auxiliary Step / Running Board >> Service and Repair >> Assist Step Replacement (w/WS2, BVX)

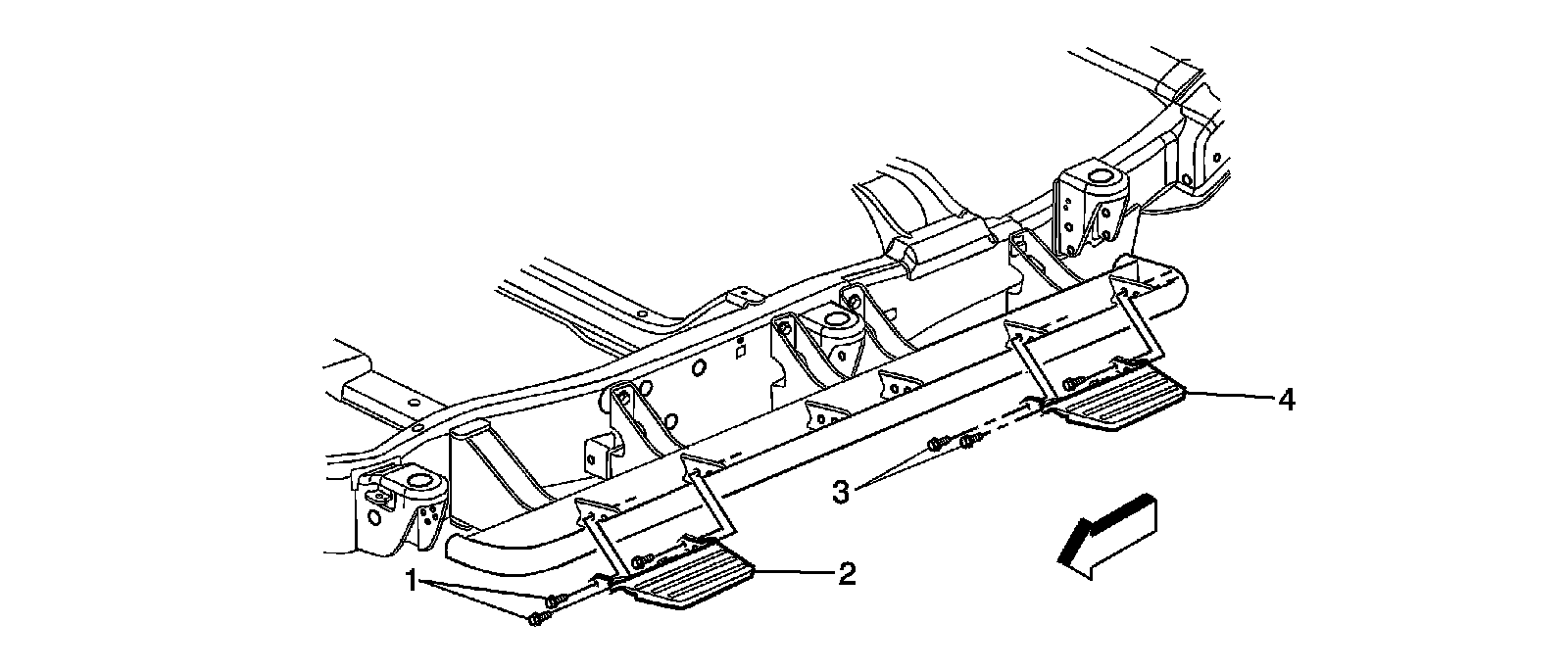

Assist Step Replacement (w/WS2, BVX)

Assist Step Replacement (w/WS2, BVX)

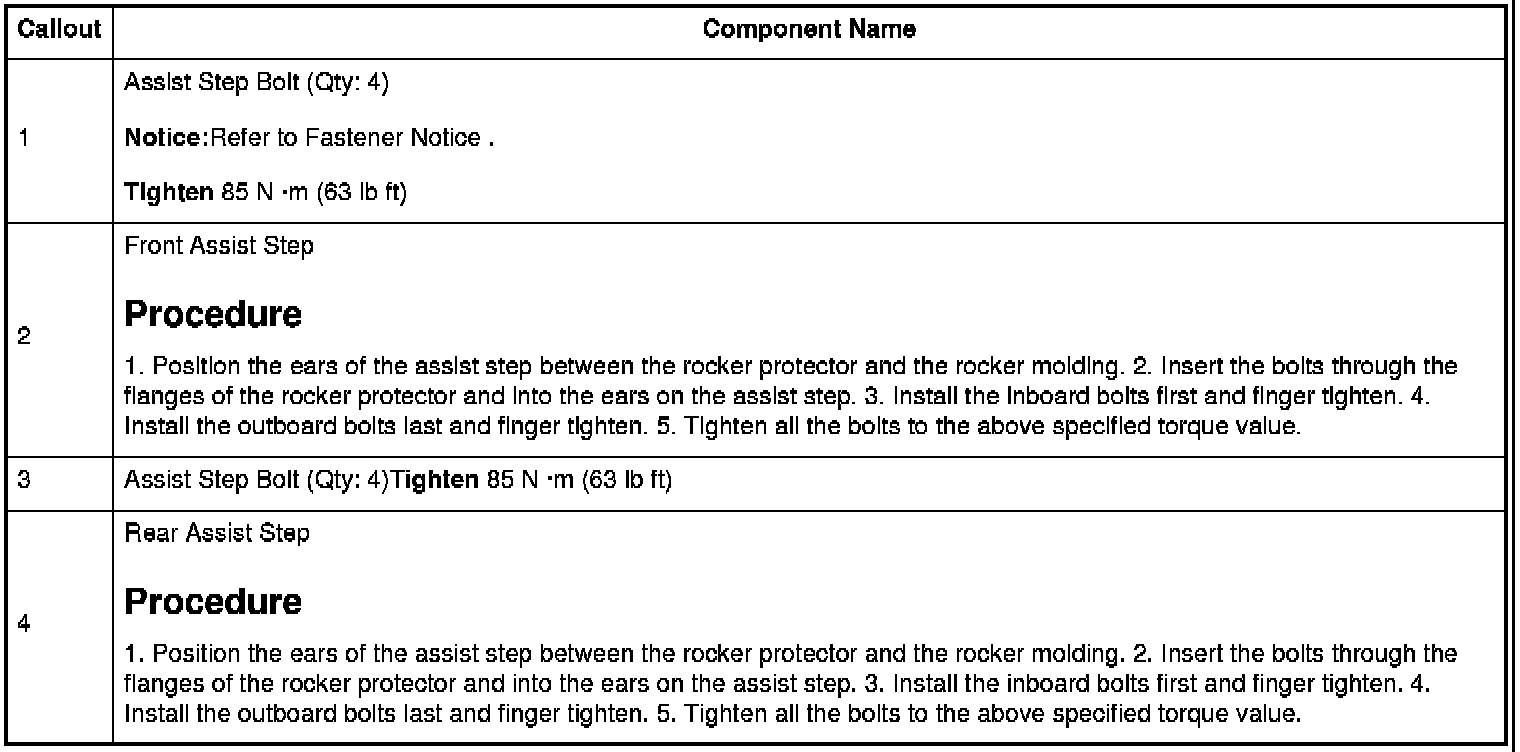

Notice:Refer to.
Tighten
Procedure
Tighten
Procedure
