Assist Step Replacement (Tubular BVE)

Assist Step Replacement (Tubular BVE)


Removal Procedure

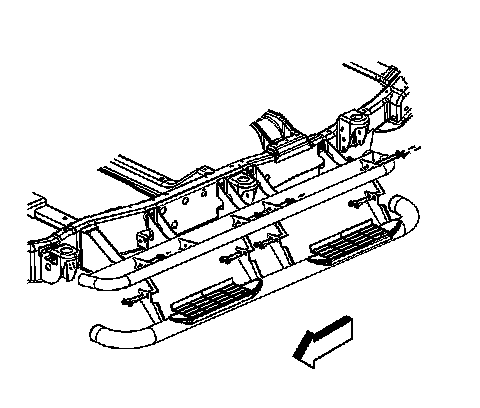

1.Remove the nuts and the bolts.

2.Remove the assist step from the vehicle.

Installation Procedure

1.Perform the following procedure before installing the bolts.

-Remove all traces of the original adhesive patch.

-Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.

-Apply Threadlocker GM P/N 12345382 (Canadian P/N 10953489).





Important:Using a level, secure the fasteners for the 2 inner brackets first. The assist step should be held level in relationship to the vehicle. Secure the fasteners for the outer brackets after the inner fasteners have been torqued.

2.Install the assist step to the vehicle. An assistant may be necessary for this step.

Notice:Refer to Fastener Notice .

3.Install the nuts and the bolts.

TightenTighten the nuts to 50 N �m (39 lb ft).
