Winch: Service and Repair

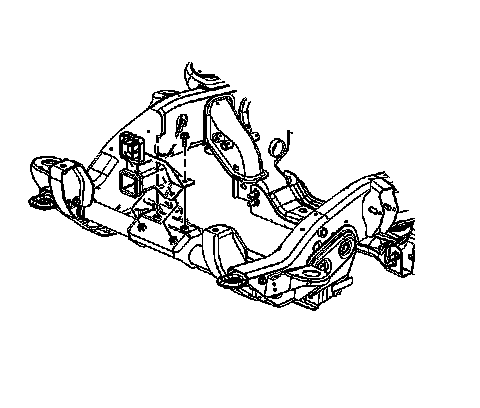

Front Pull Winch Receiver Replacement


Removal Procedure

1.Remove the bumper. Refer to Front Bumper Replacement Service and Repair .





2.Remove the winch receiver bolts from the frame.

3.Remove the winch receiver from the vehicle.

Installation Procedure





1.Install the winch receiver to the vehicle.

Notice:Refer to Fastener Notice .

2.Install the receiver bolts to the frame.

TightenTighten the bolts to 85 N �m (63 lb ft).

3.Install the bumper. Refer to Front Bumper Replacement Service and Repair .
