Speaker Replacement - Rear Quarter

Speaker Replacement - Rear Quarter

Removal Procedure

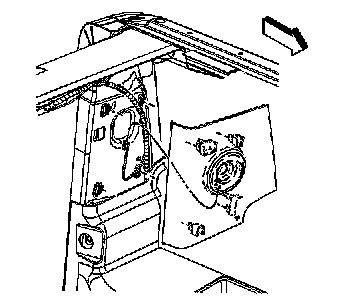

1. Remove the rear quarter panel to expose the speaker.
2. Disconnect the electrical connection from the speaker.
3. Remove the speaker grille from the panel.
4. Remove the screws that hold the speaker to the quarter trim panel.

Installation Procedure

Notice: Refer to Fastener Notice.

1. Fasten the screws that hold the speaker to the quarter trim panel.

Tighten screws/bolts to 2 N.m (18 lb in).

2. Install the speaker grille.




3. Make the electrical connection to the speaker harness.
4. Install the rear quarter panel to the body.
5. Check speaker for operation.
