Automatic Volume Control: Service and Repair

Rear Seat Audio Control Replacement

Removal Procedure

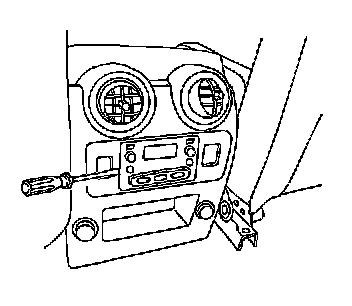

1. Remove the rear seat audio controls. Pry gently with a flat bladed tool to disengage the retainer.

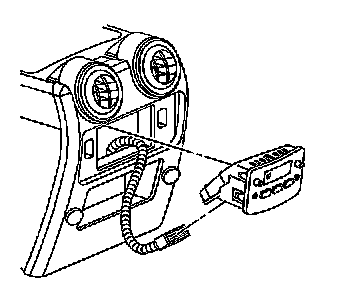

2. Disconnect the electrical connectors from the rear seat audio controls.

Installation Procedure




1. Connect the electrical connections to the rear seat audio controls.




2. Install the rear seat audio controls to the console end panel.
3. Inspect the operation of the rear audio controls.
