Amplifier: Service and Repair

Amplifier Replacement

Removal Procedure




1. Remove the center console.

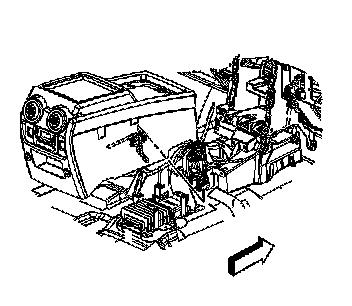

2. Remove the amplifier from the amplifier bracket by removing the four screws.
3. Disconnect the electrical connectors from the amplifier.
4. Remove the amplifier from the vehicle.

Installation Procedure

1. Align the amplifier with the amplifier bracket.

Notice: Refer to Fastener Notice.

2. Install the amplifier screws.

Tighten the screws to 3.4 N.m (30 lb in).




3. Connect the electrical connectors to the amplifier.
4. Install the center console to the center console bracket.
5. Inspect the system for proper operation.
