Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Content Theft Deterrent (CTD) Does Not Disarm with Key Lock

Content Theft Deterrent (CTD) Does Not Disarm with Key Lock



Content Theft Deterrent (CTD) Does Not Disarm with Key Lock

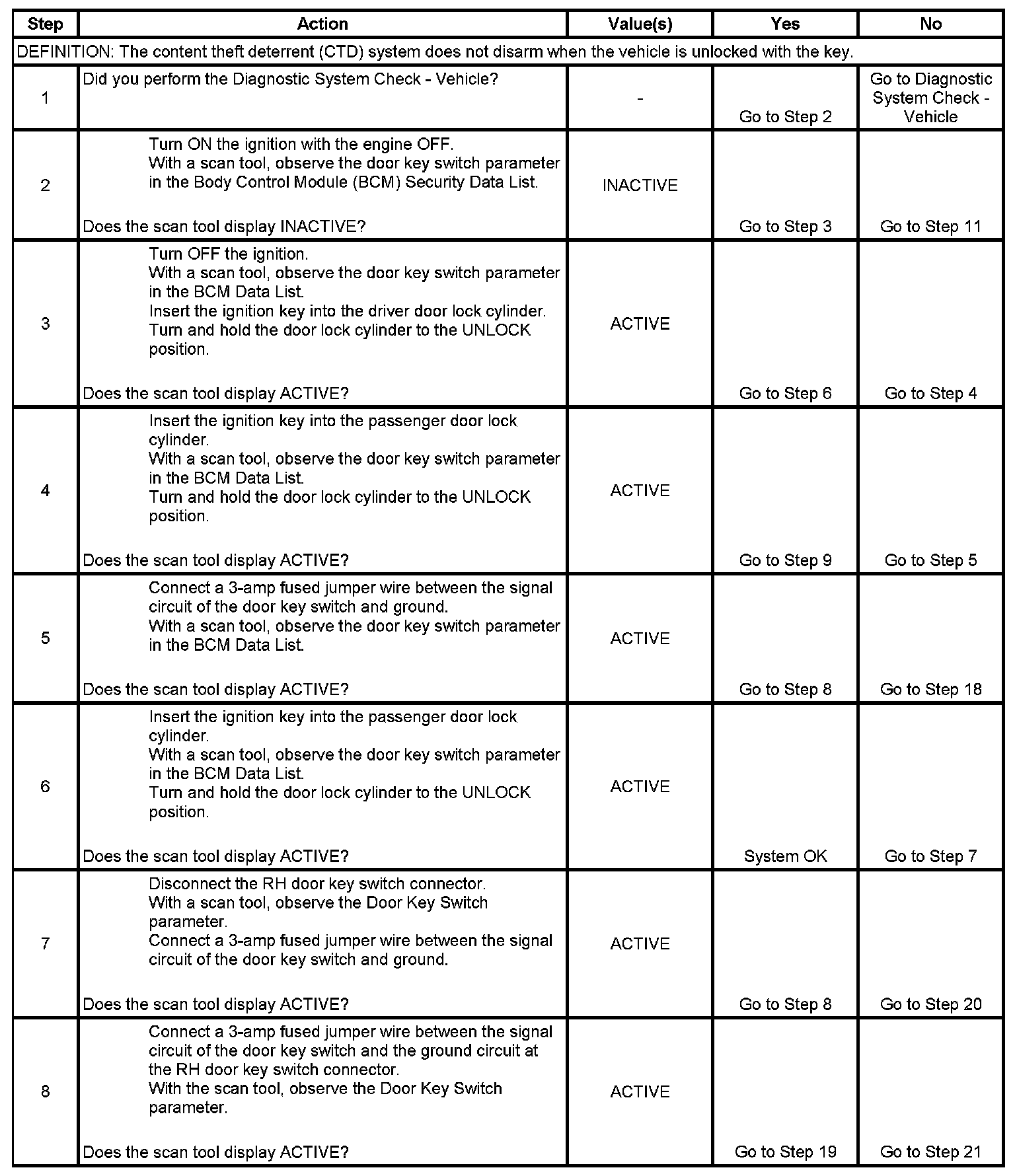

Step 1 - Step 8:

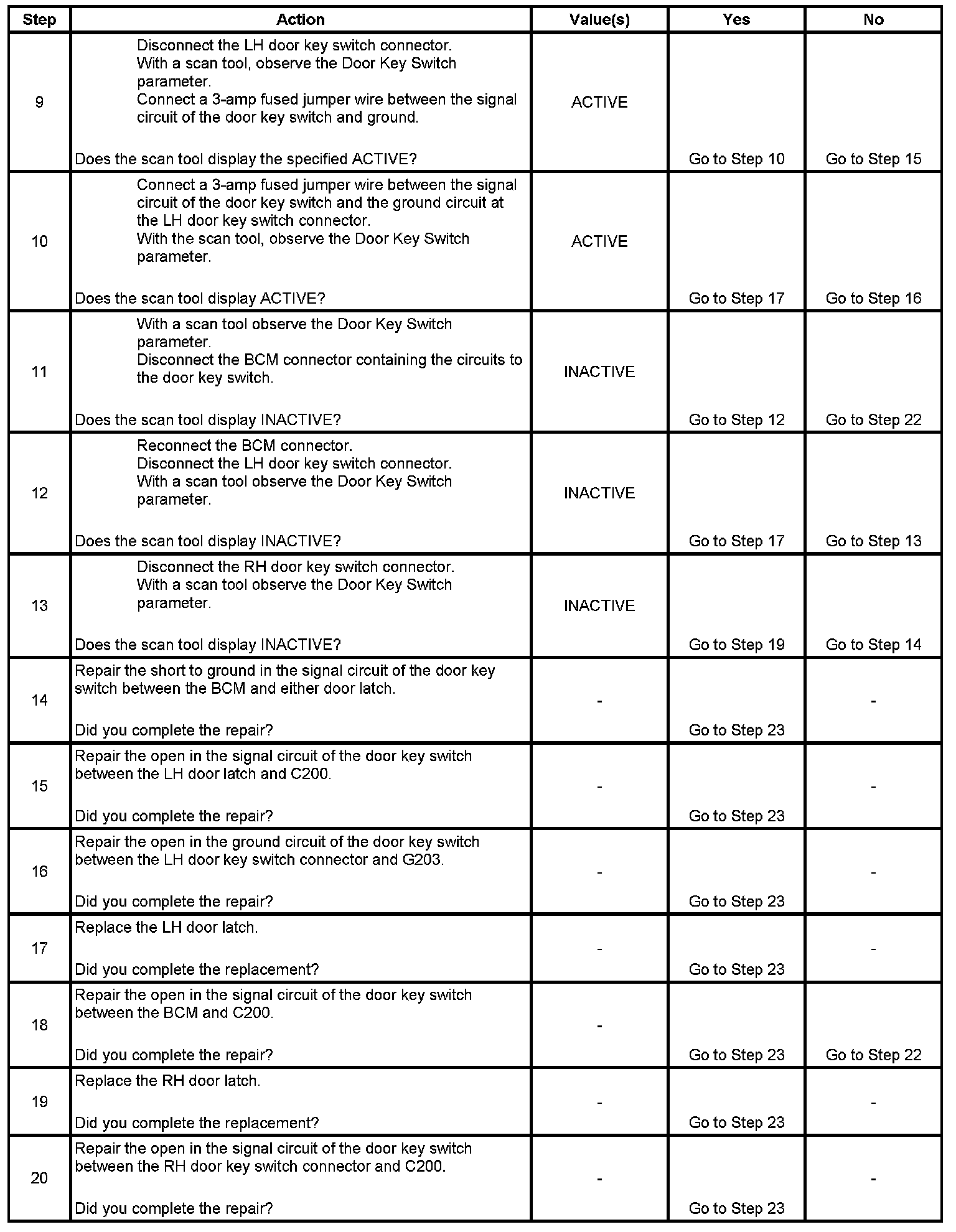

Step 9 - Step 20:

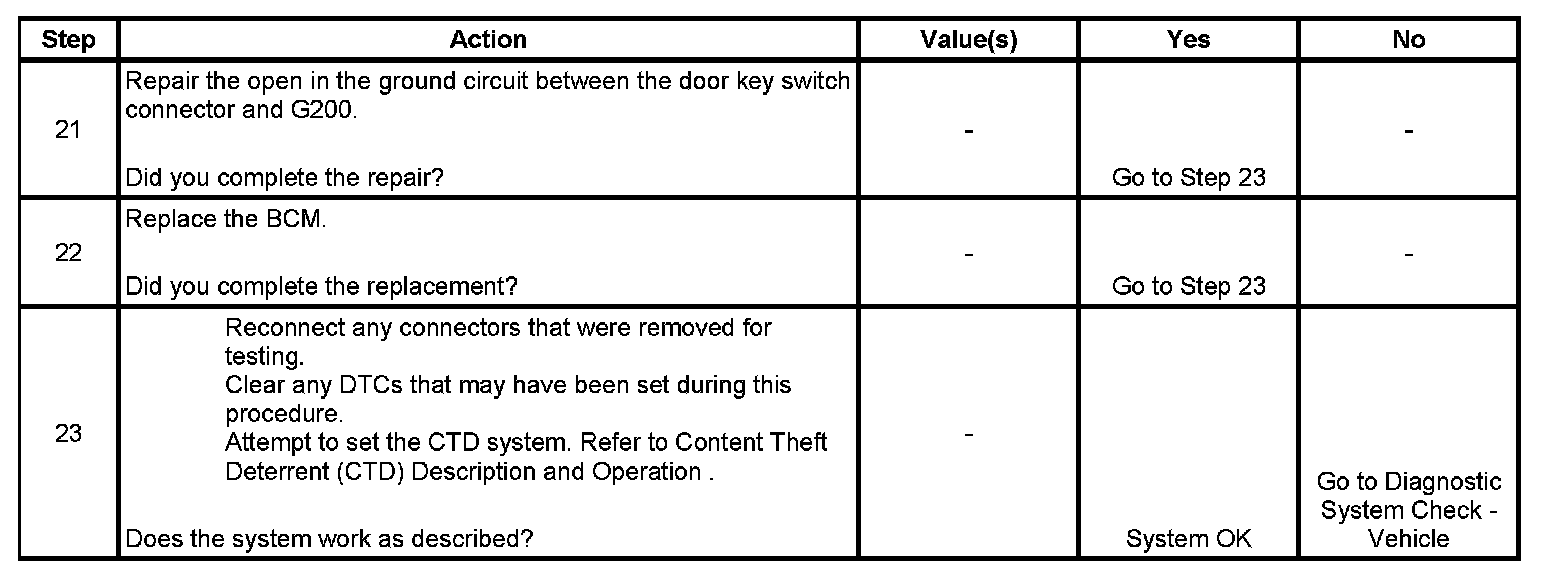

Step 21 - Step 23:
