C0707
DTC C0707
Circuit Description
The air suspension module monitors the run time of the compressor. If the compressor has run for more than one hour during an ignition cycle the air suspension module switches OFF the compressor relay. The run timer counts down when the compressor is OFF with the ignition ON.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC C0707 Excessive Compressor Activity
Conditions for Running the DTC
The ignition is ON.
Conditions for Setting the DTC
The compressor run timer has exceeded 1 hour of run time.
Action Taken When the DTC Sets
* The air suspension functionality is suspended.
* SERVICE AIR SUSPENSION message is displayed.
Conditions for Clearing the DTC
The DTC will clear when the condition for setting the DTC is removed.
Diagnostic Aids
This DTC is set when the compressor has run to long.

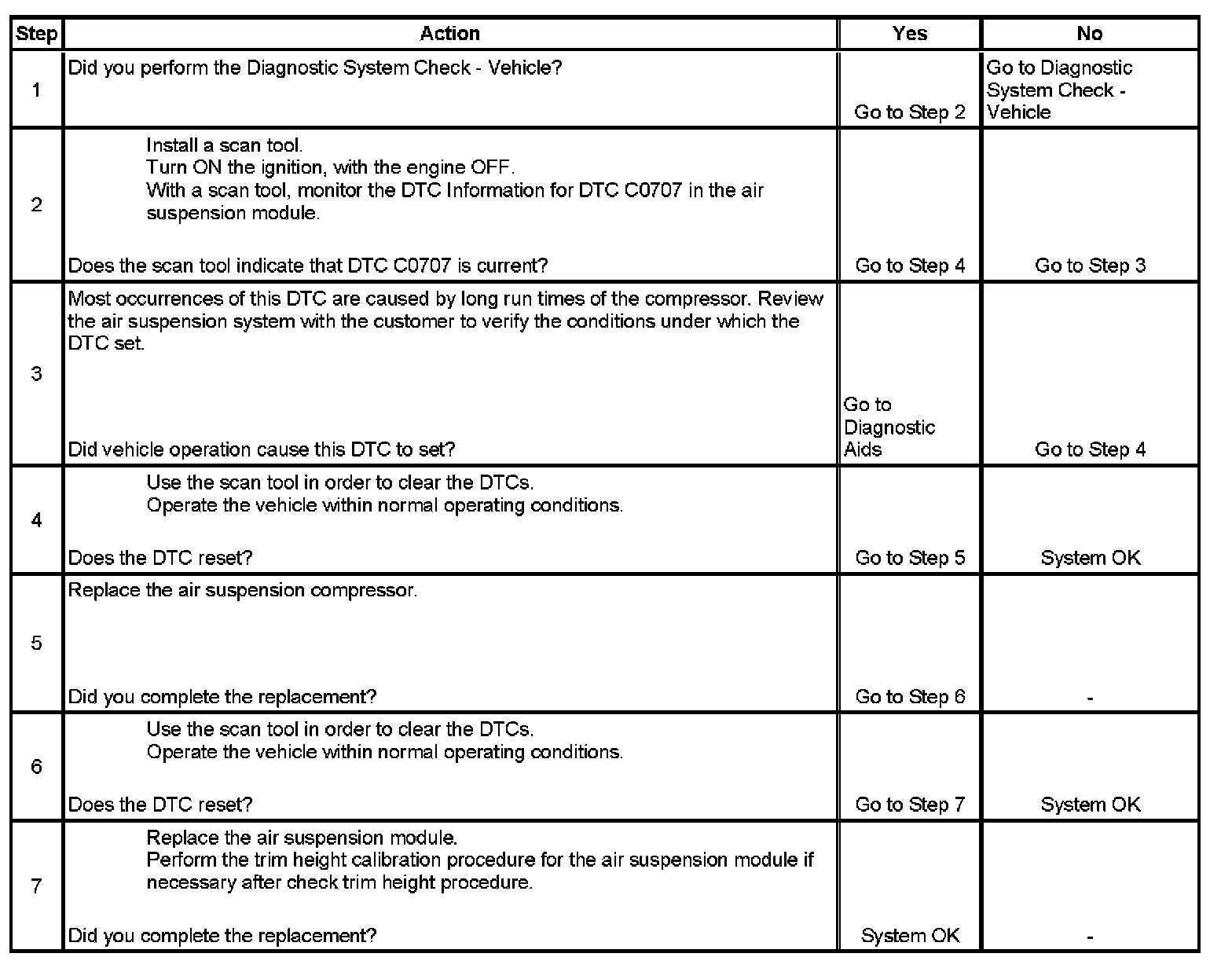

Test Description
The numbers below refer to the step numbers on the diagnostic table.
3. This step tests whether the condition is module, system, or condition related.
4. This step tests if the condition has been corrected or identified as specified in the supporting text.
6. This step tests if the DTC sets during normal operating conditions.
