C0702
DTC C0702
Circuit Description
The general valve fault DTC is set when one of the valves fail.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC C0702 Level Control Accessory Valve Circuit
Conditions for Running the DTC
The ignition is ON.
Conditions for Setting the DTC
Air suspension module senses general valve voltage does not agree with command state.
Action Taken When the DTC Sets
* Air Suspension functionality is suspended.
* SERVICE AIR SUSPENSION message is displayed.
Conditions for Clearing the DTC
The DTC will clear when the condition for setting the DTC is removed.
Diagnostic Aids
This DTC is set when the general valve circuitry is shorted to ground, voltage and open.
Test Description

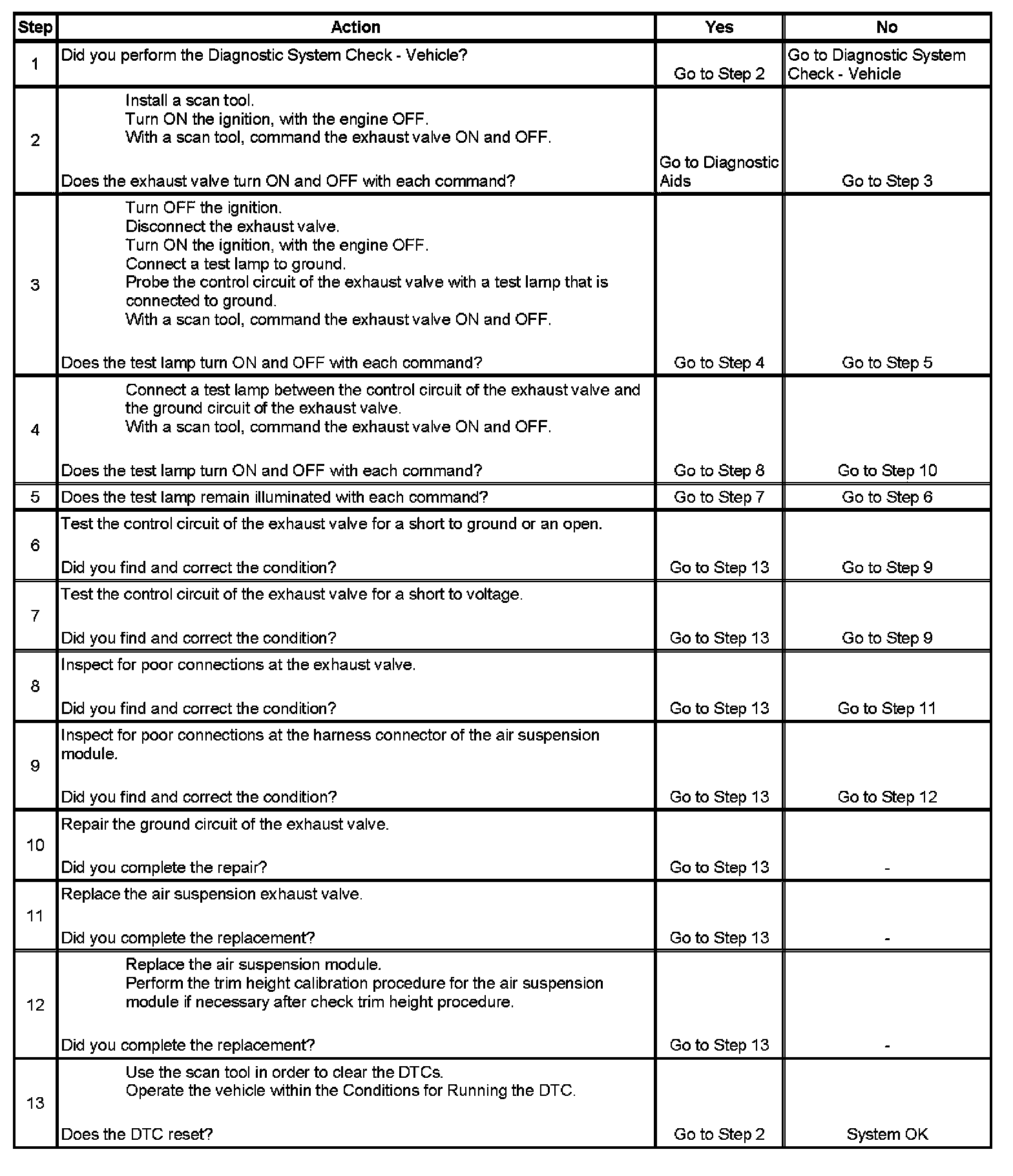

The numbers below refer to the step numbers on the diagnostic table.
2. During the air suspension exhaust valve operation, listen for an audible click. Command the ON and the OFF states. Repeat the commands as necessary.
3. Verifies that the air suspension module is providing voltage to the air suspension exhaust valve.
4. Tests for an open in the ground circuit to the air suspension exhaust valve.
5. Tests for constant voltage to the air suspension exhaust valve.
