C0696

DTC C0696

Circuit Description

With the ignition switch in the on position the current draw of both air suspension sensors and the air suspension pressure sensor is verified by the air suspension module to be within a calibrated range. If the current draw is out of range a DTC is set.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC C0696 Position Sensor Over Current (5 volt supply)

Conditions for Running the DTC

The ignition is ON.

Conditions for Setting the DTC

The air suspension module detects that the current drawn by the air suspension sensors and air suspension pressure sensor is below 3 mA or above 40 mA.

Action Taken When the DTC Sets

* Air suspension functionality is suspended.
* SERVICE AIR SUSPENSION message is displayed.

Conditions for Clearing the DTC

DTC is cleared by cycling ignition.

Test Description

The numbers below refer to the step numbers on the diagnostic table.
2. Test air suspension sensor current.
3. Test the wiring for the overcurrent condition.
4. Tests for the component that is creating the overcurrent.

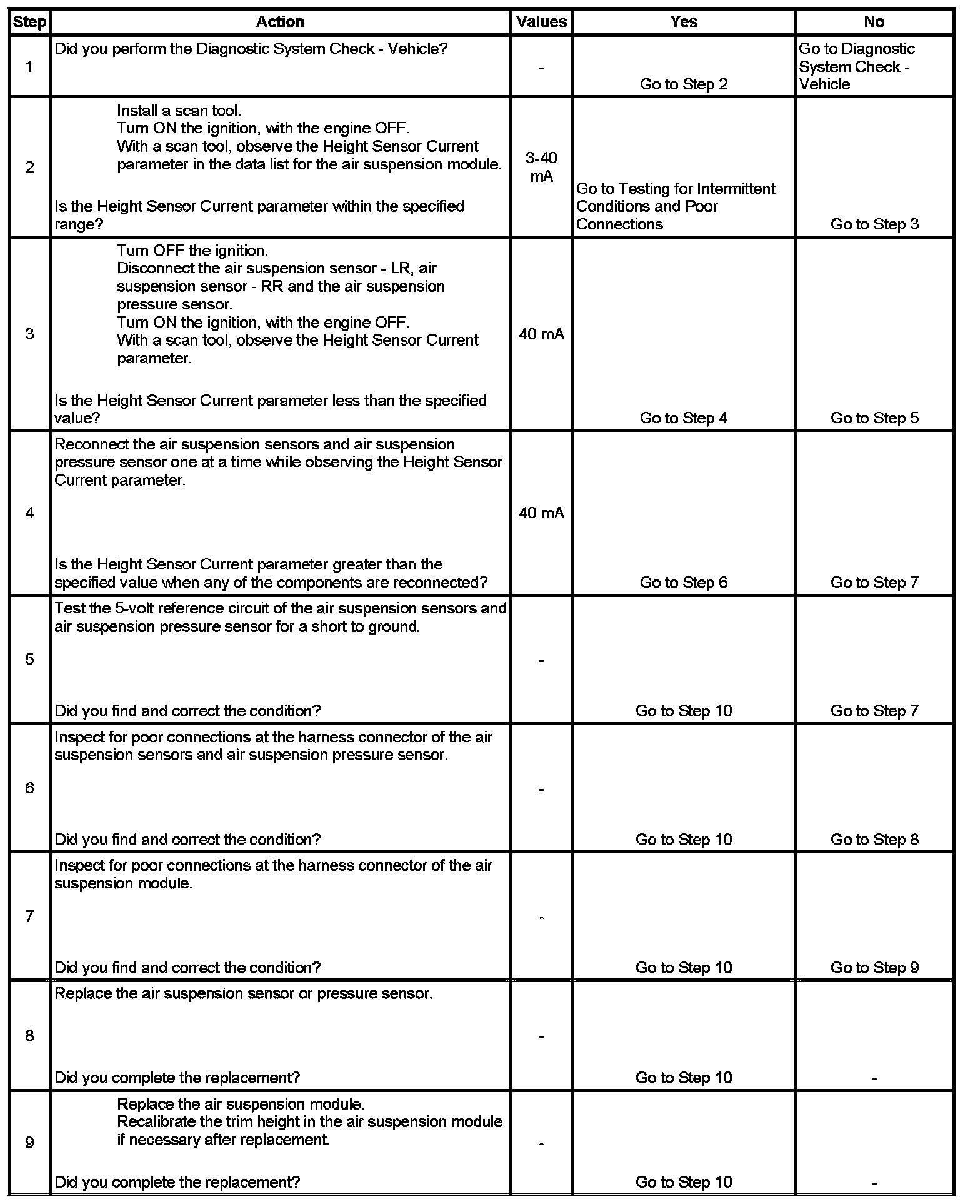

Step 1 - Step 9:

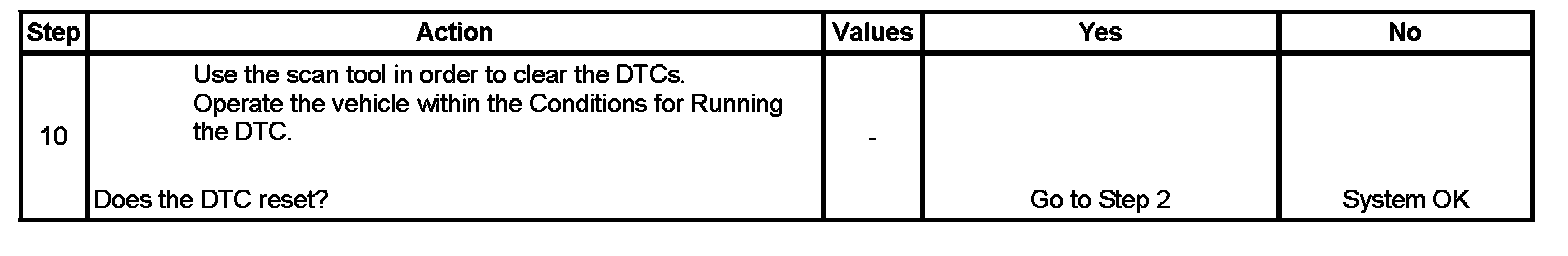

Step 10:
