B3824
DTC B3824
Circuit Description
Battery positive voltage is supplied to the right rear power window switch and the up and down relays through the window lockout signal circuit. If the window lockout function is disabled, the body control module (BCM) supplies battery positive voltage to the switch and relays and the right window operates normally. If the window lockout function is enabled, the BCM will not supply battery positive voltage to the switch and relays and the right rear window will be inoperative unless it is operated from the driver power window switch.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC B3824 Right Rear Window Relay Power Circuit
Conditions for Running the DTC
* Battery voltage is between 9-16 volts
* The window lockout function is disabled
Conditions for Setting the DTC
* The window lockout function is disabled and the window lockout signal circuit is shorted to ground.
* The above condition must be met for 250 milliseconds.
Action Taken When the DTC Sets
The right rear power window will be inoperative from both the driver and passenger power window switches.
Conditions for Clearing the DTC
When the fault is no longer present, the BCM changes the current DTC to a history DTC. The BCM will clear the history DTC after 50 fault free ignition cycles.

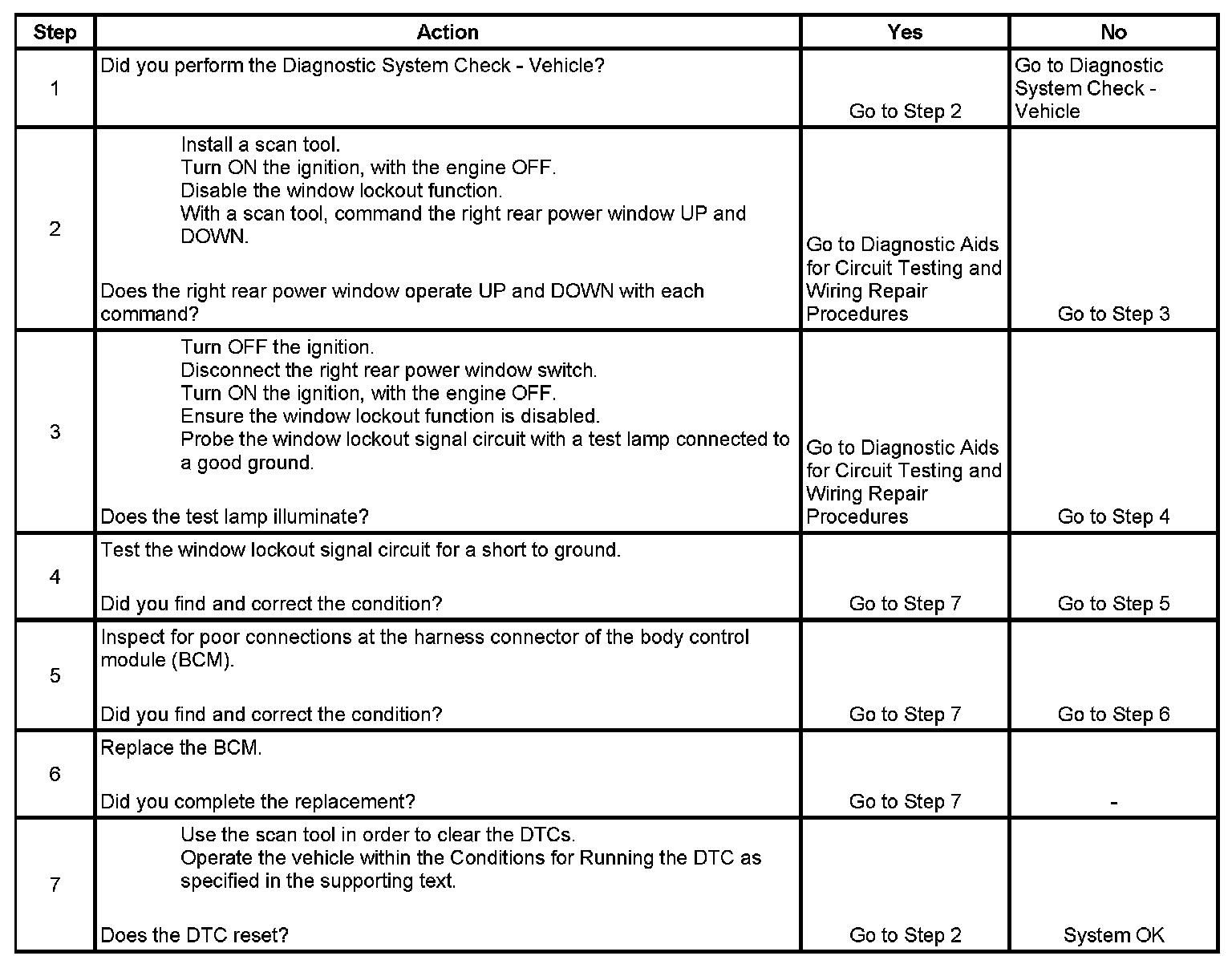

Test
