B3822

DTC B3822

Circuit Description

The body control module (BCM) grounds the control side of the right rear power window up relay upon receiving a class 2 message from the driver door module (DDM).

DTC Descriptors

This diagnostic procedure supports the following DTC:

DTC B3822 Right Rear Window Up Control Circuit

Conditions for Running the DTC

* Battery voltage is between 9-16 volts.
* The BCM has received a class 2 message from the DDM and has grounded the right rear power window relay control circuit.

Conditions for Setting the DTC

* When the BCM has grounded the right rear power window up relay control circuit and the control circuit is shorted to battery positive voltage.
* The above condition is met for 250 milliseconds.

Action Taken When the DTC Sets

The right rear power window will be inoperative from both the driver and right rear power window switches.

Conditions for Clearing the DTC

When the fault is no longer present, the BCM changes the current DTC to a history DTC. The BCM will clear the history DTC after 50 fault free ignition cycles.

Test Description

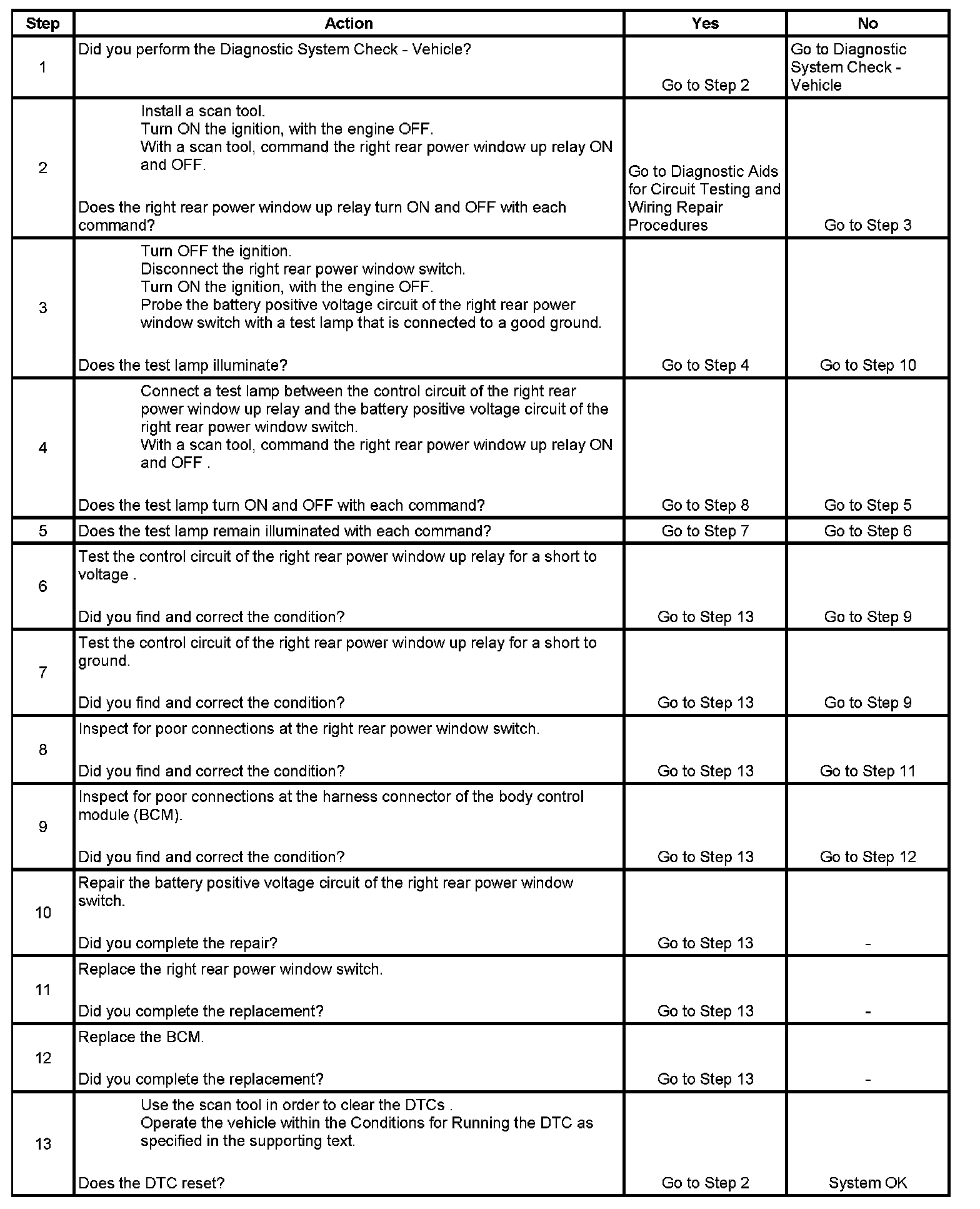

Step 1 - Step 13:

The numbers below refer to the step numbers on the diagnostic table.
2. Listen for an audible click when the right rear power window relay operates. Command both the ON and OFF states. Repeat the commands as necessary.
3. Tests for voltage at the coil side of the right rear power window up relay.
4. Verifies that the BCM is providing ground to the right rear power window up relay.
5. Tests if ground is constantly being applied to the right rear power window up relay.
