B2795
DTC B2795
Circuit Description
The air suspension module monitors the ride height switch signal circuit for a short to ground or battery with ignition on and up to 3 minutes with the ignition OFF.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC B2795 Suspension Control Select Switch Circuit
Conditions for Running the DTC
The ignition is ON or OFF.
Conditions for Setting the DTC
The air suspension module senses the ride height switch signal circuit voltage is shorted to ground or battery.
Action Taken When the DTC Sets
* A DTC is set.
* No message is displayed.
Conditions for Clearing the DTC
The DTC will clear when the condition for setting the DTC is removed.
Diagnostic Aids
This DTC is set when the ride height switch circuitry is shorted to ground, voltage and open.
Test Description

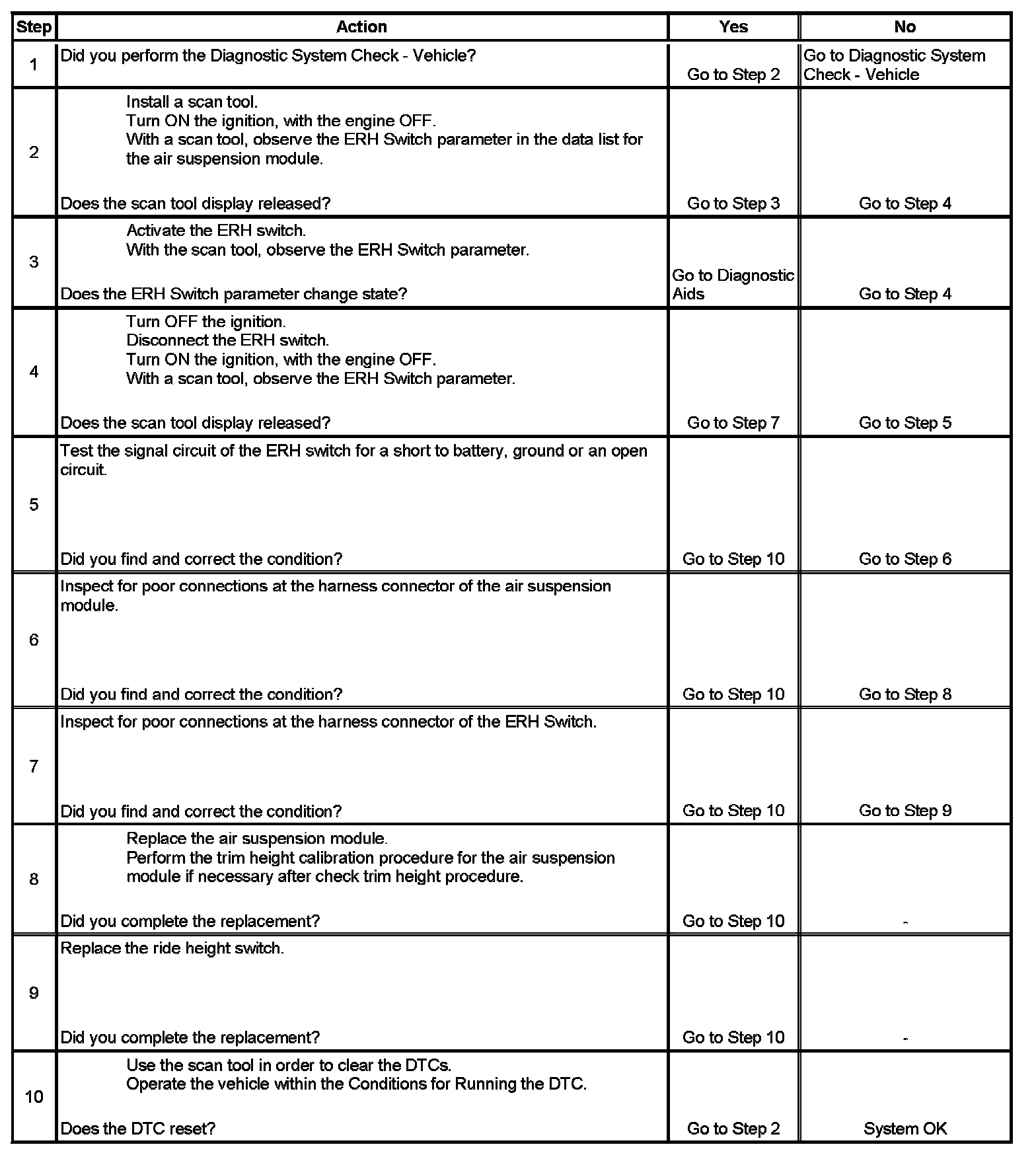

The numbers below refer to the step numbers on the diagnostic table.
2. This step tests for normal scan tool data parameters.
3. This step tests for data parameter change with scan tool.
4. This step tests the signal circuit to be inactive.
