B2460

DTC B2460

Circuit Description

The navigation radio supplies power to the TV antenna module to permit the selection of the antenna set used. The radio tests the antenna select supply voltage circuit every 500 ms after the ignition is cycled to ON. The radio does this by monitoring the current draw on the antenna select supply voltage circuit.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC B2460 Navigation Antenna Selector Circuit High Current

Conditions for Running the DTC

* The navigation radio must detect a power mode transition from OFF-ASLEEP to either:

- ACC
- ON

* The vehicle must be equipped with the navigation system with TV option (RPO UE7).
* The navigation radio does not set this DTC if DTC B1327 or DTC B1328 is current.

Conditions for Setting the DTC

* Current draw of the TV antenna module exceeds the regular value.
* The antenna select supply voltage circuit shorted to ground.
* DTC B2460 does not set if DTC B1328 or DTC B1327 is current.

Action Taken When the DTC Sets

* TV video unclear, grey screen
* TV audio unclear, full of static

This failure has no effect outside the TV function of the navigation system.

Conditions for Clearing the DTC

A current DTC clears when the navigation radio does not detect the failure for more than 500 ms.

Diagnostic Aids

An intermittent condition may be caused by the following:

* Mis-routed harness
* Rubbed through wire insulation

Test Description

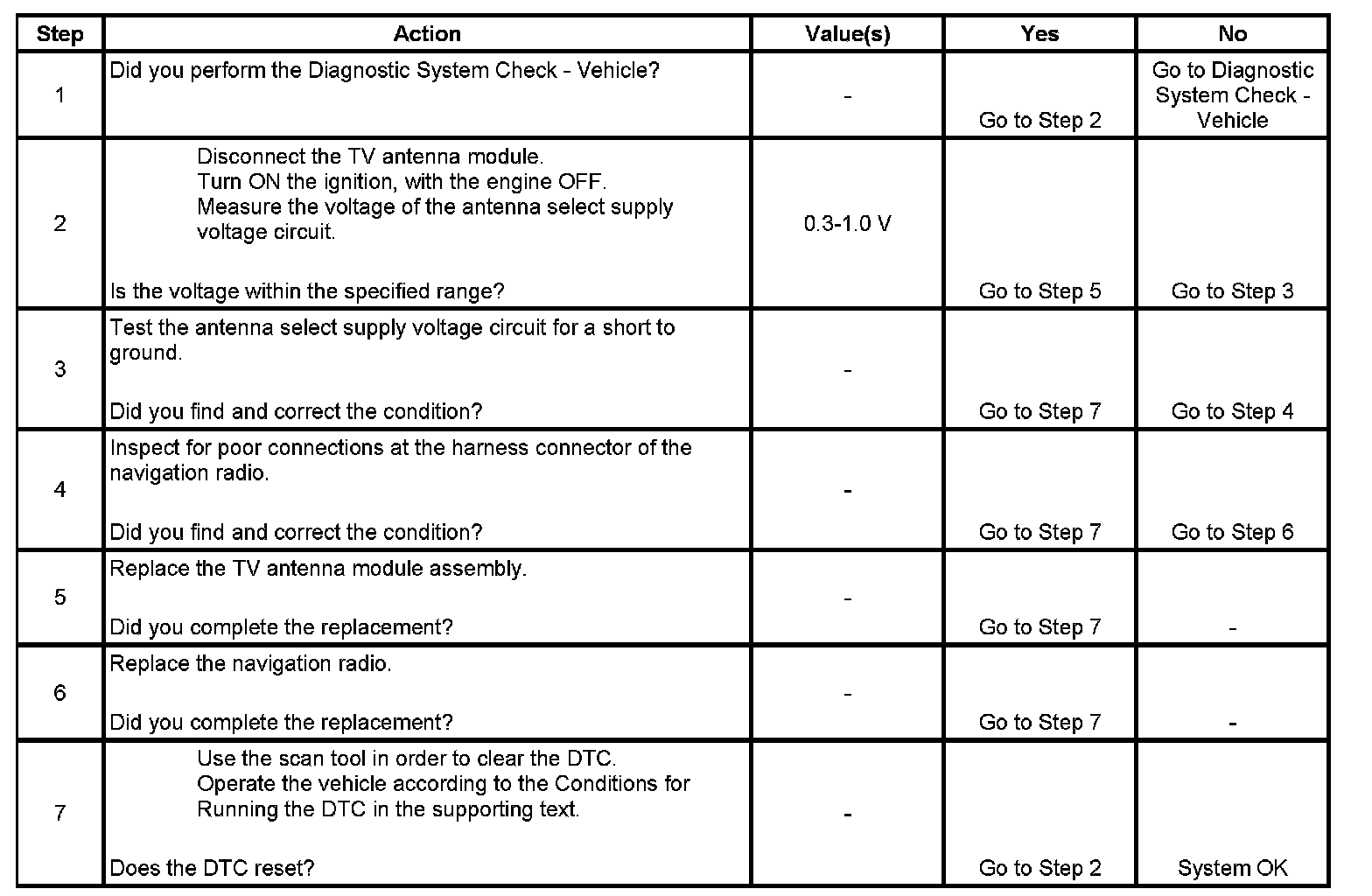

Step 1 - Step 7:

The numbers below refer to the step numbers on the diagnostic table.
1. Determines if the malfunction is present.
3. Tests the antenna select supply voltage.
