B2430

DTC B2425 or B2430

Circuit Description

The driver and passenger seat heaters are controlled by the driver seat module. Power is supplied to the driver seat cushion and back heater elements through individual voltage supply circuits. Power is supplied to the passenger seat cushion and back heater elements through a common voltage supply circuit. All of the driver and passenger seat heater elements are grounded by the driver seat module through individual low side drive control circuits. The heater element control circuits are pulse width modulated to ground by the driver seat module in order to control the seat temperatures by regulating the current flow through the heater elements.

DTC Descriptors

This Diagnostic procedure supports the following DTCs:

* DTC B2425 Driver Seat Heater Circuit
* DTC B2430 Passenger Seat Heater Circuit

Conditions for Running the DTC

The system voltage must be between 9-6 volts.

Conditions for Setting the DTC

The driver seat module determines by monitoring the heater element control circuits that a short to voltage, short to ground, or open condition exists.

Action Taken When the DTC Sets

* The heated seat with a current status DTC will be disabled.
* Both heated seats may be disabled.
* When the fault is no longer present a history status DTC will be stored, and heated seat operation will be restored.

Conditions for Clearing the DTC

* The DTC will be current for as long as the fault is present.
* When the fault is no longer present the DTC will be a history status code.
* The history DTC will be cleared after 100 error free ignition cycles, or by using the scan tool clearing DTCs feature.

Test

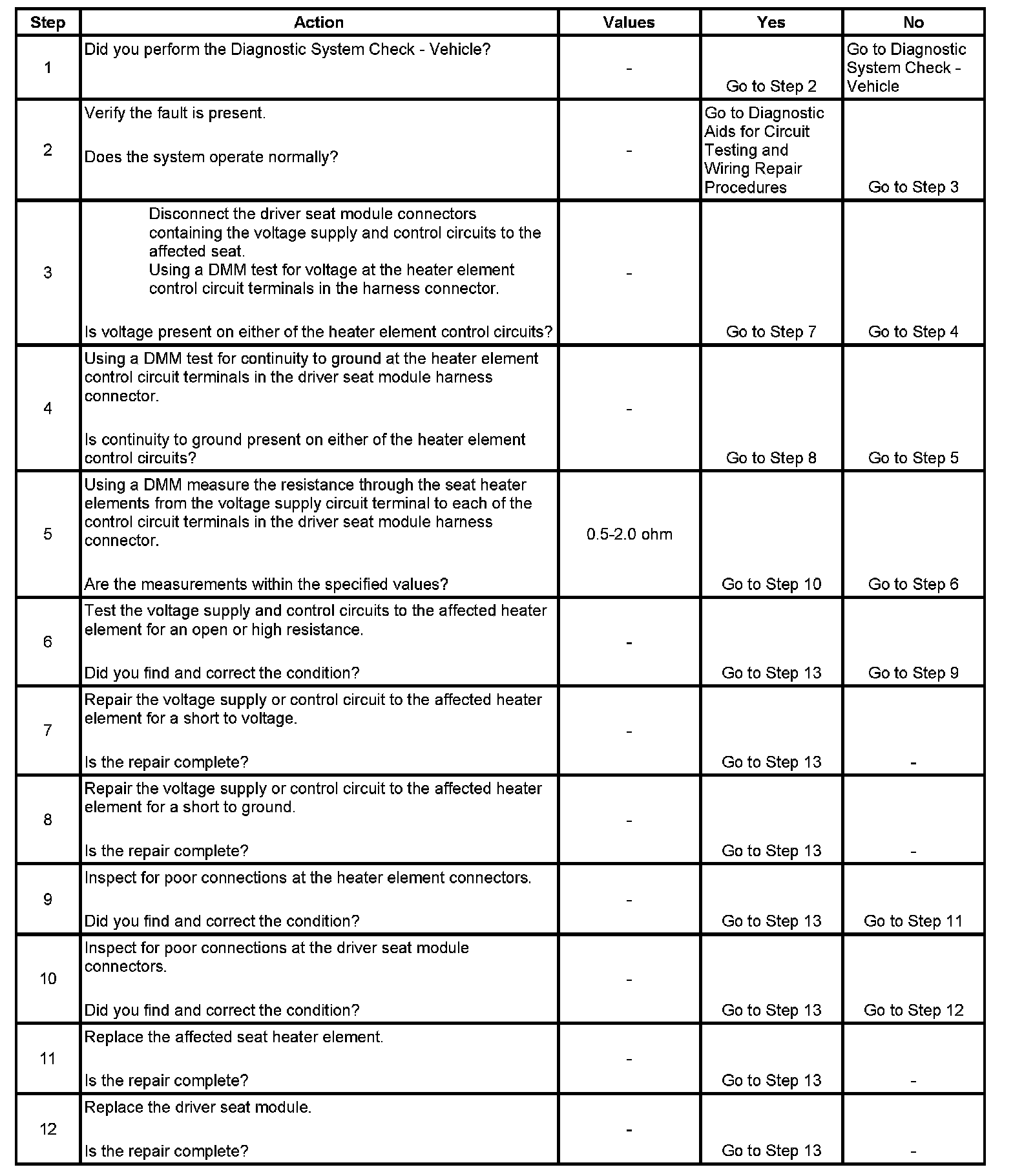

Step 1 - Step 12:

Step 13:
