Body - Window Outer Belt Sealing Strip Ends Glossy
Bulletin No.: 05-08-111-004ADate: June 16, 2005
TECHNICAL
Subject:
Window Outer Belt Sealing Strip Ends Are Glossy (Wash Molding)
Models:
2006 HUMMER H3
Supercede:
This bulletin is being revised to add an illustration. Please discard Corporate Bulletin Number 05-08-111-004 (Section 08 - Body and Accessories).
Condition

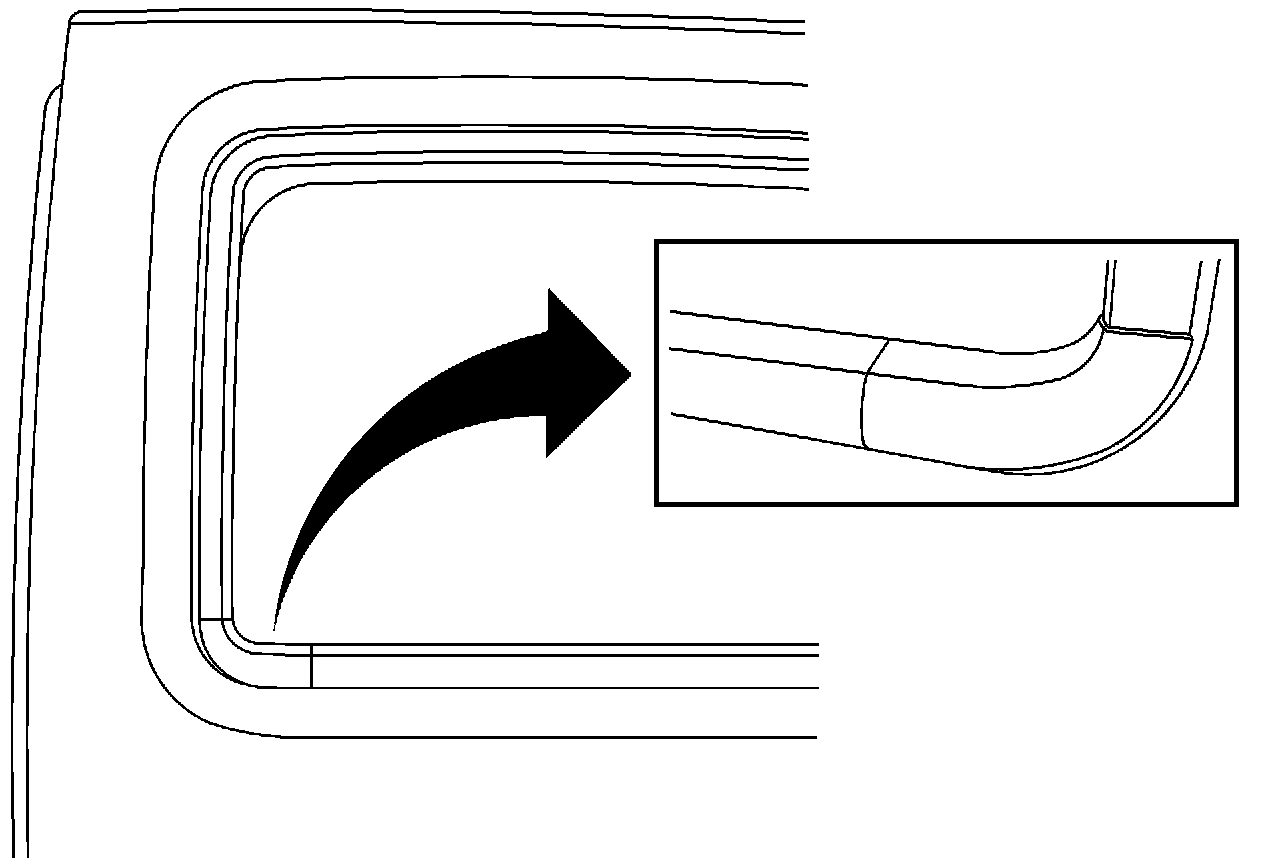

Some customers may comment that their outer belt sealing strip (bottom corners of the outer edge of the door glass) ends are glossy compared to the rest of the molding. Refer to the illustration above.
Cause
This condition may be caused by a gloss level change to the ends of the molding due to the use of a release agent on the molding.
Correction
1. Scrub the affected area with full strength, non-abrasive liquid detergent concentrate (such as Formula 409, Fantastik or Armor-all Multi-Purpose Auto Cleaner) with a sponge or soft cloth.
2. Rinse and wipe entire assembly dry. Inspect the dried part for possible residual gloss migration. Repeat cleaning in areas where inspection shows the condition still exists.
Warranty Information

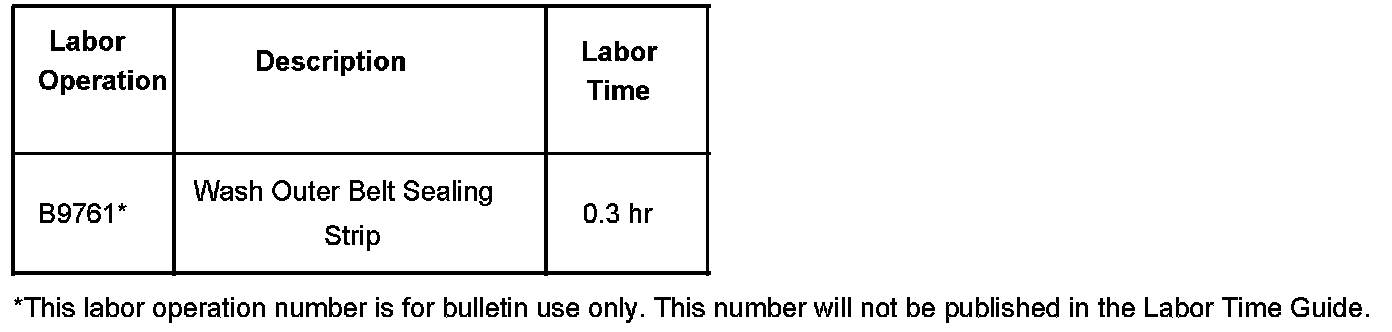

For vehicles repaired under warranty use the table.
