Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Diagrams >> Connector Views

Connector Views

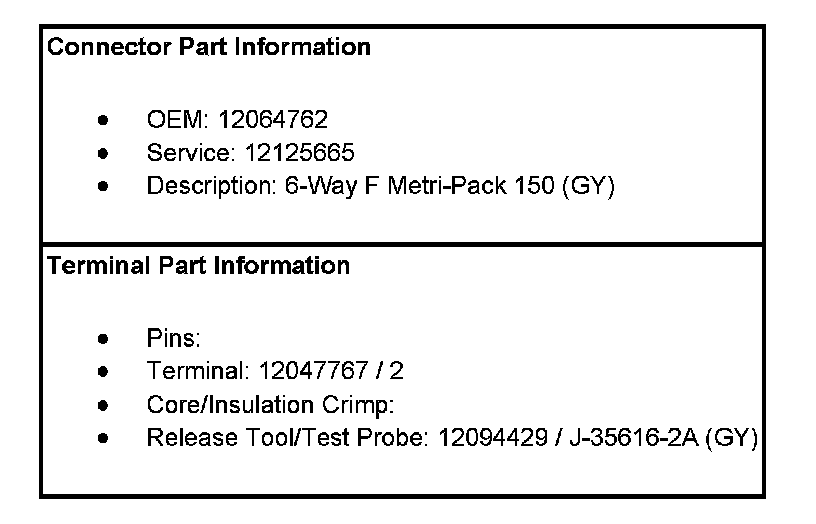

Automatic Transmission Shift Lock Control Connector End Views

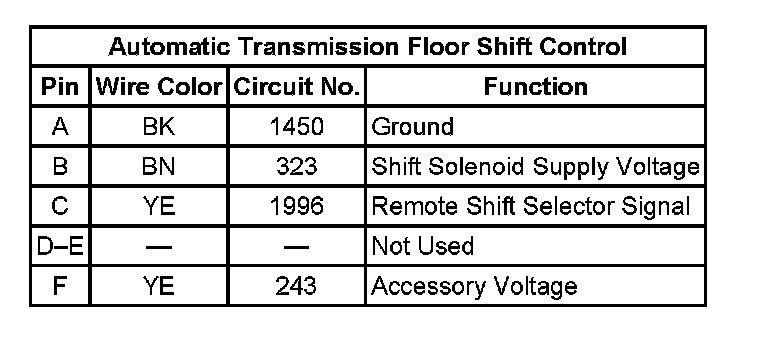

Automatic Transmission Floor Shift Control:
