74. 1-2 Accumulator Disassemble

1-2 Accumulator Disassemble





1. Important: Some models do not use 1-2 accumulator spring - inner (104).

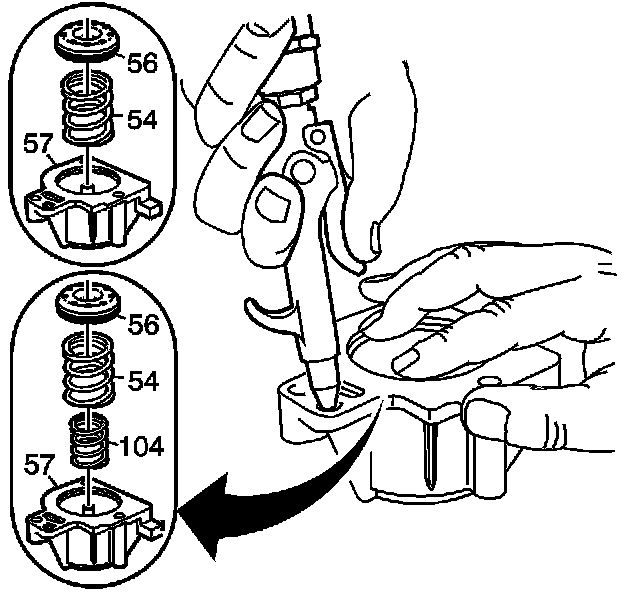

Blow air into the 1-2 accumulator housing (57) to remove the 1-2 accumulator piston (56).
2. Remove the 1-2 inner (104) and outer (54) accumulator springs.
