Relay Box
>>
Application and ID
Relay Box: Application and ID

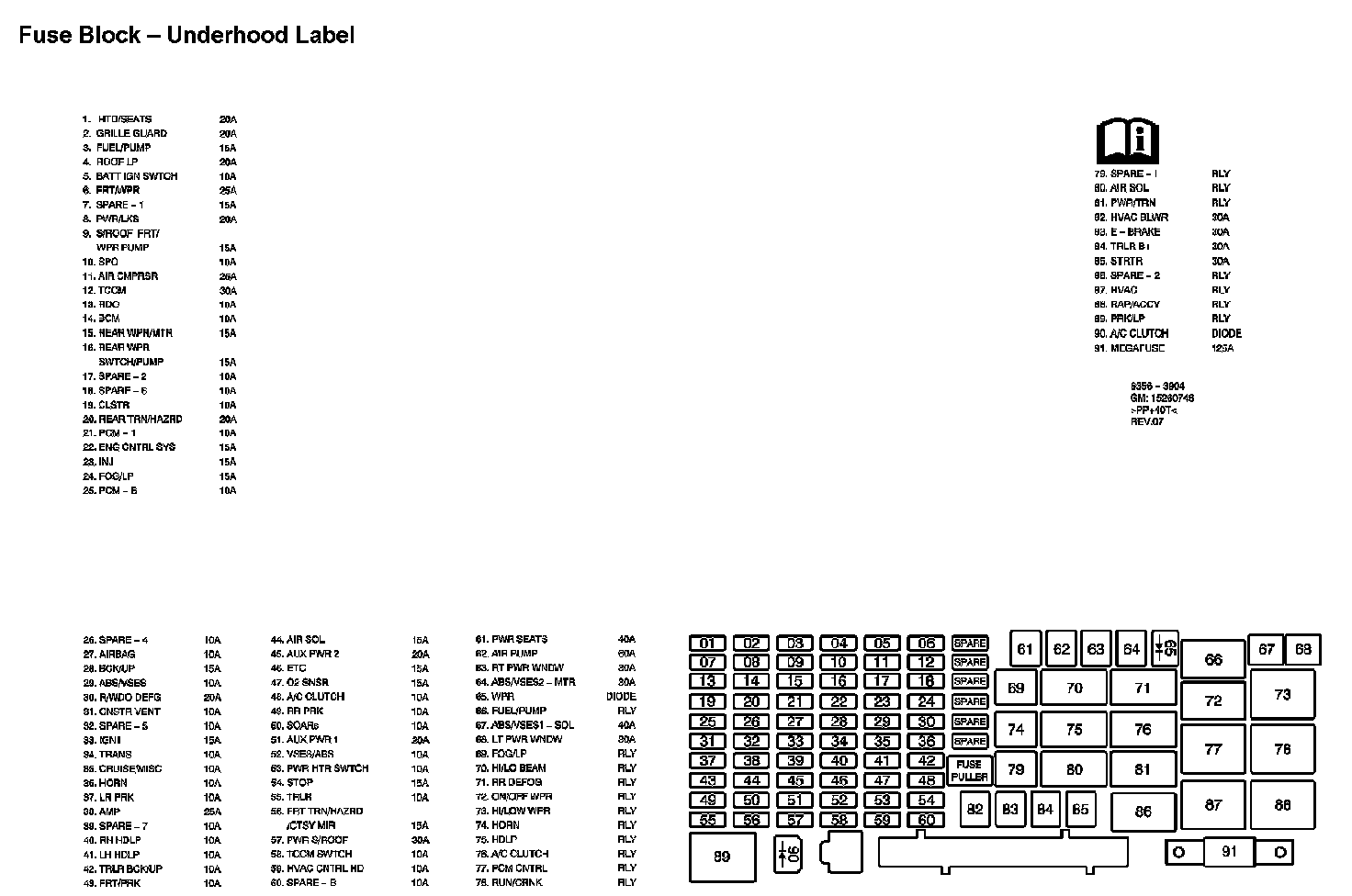

Location View:

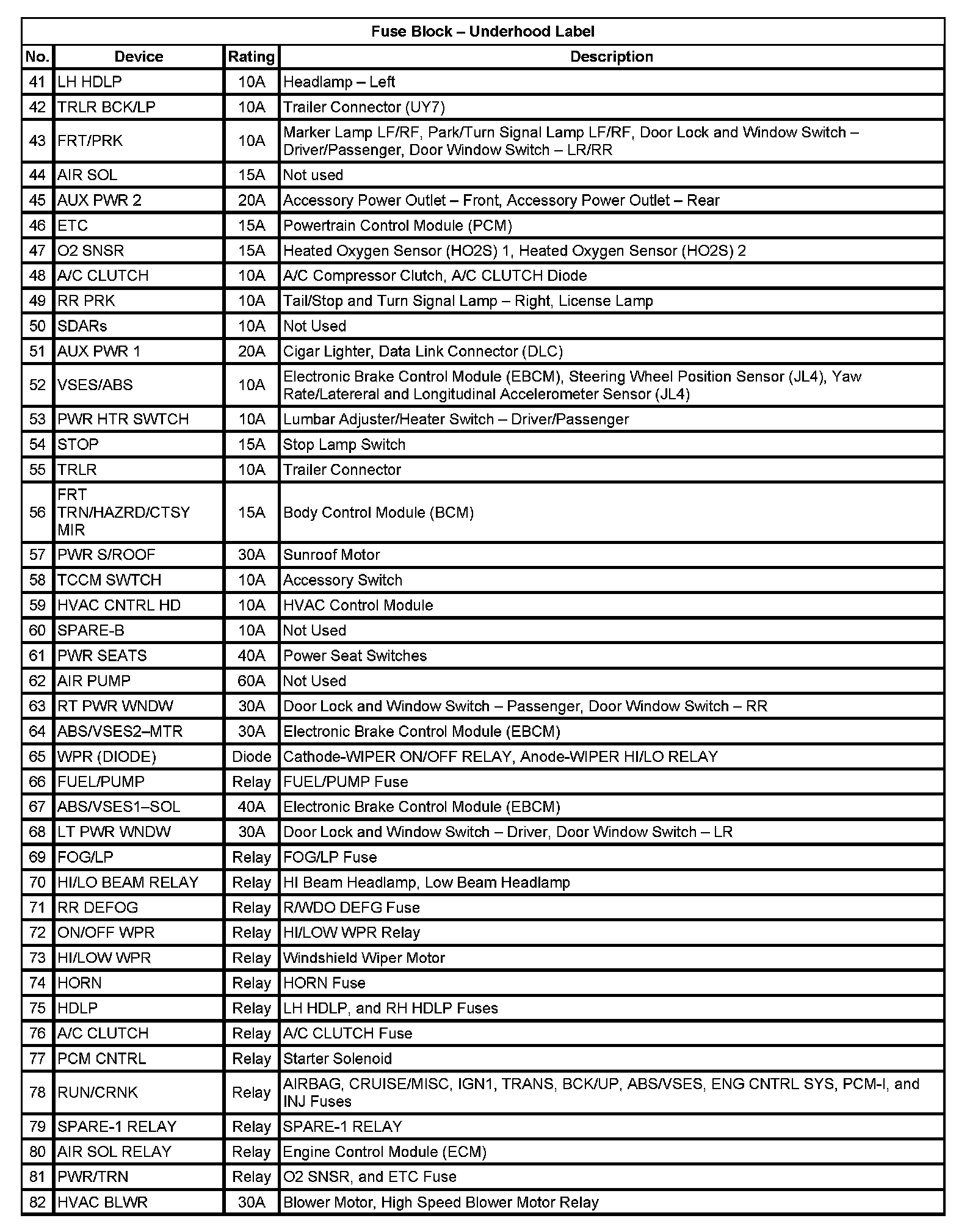

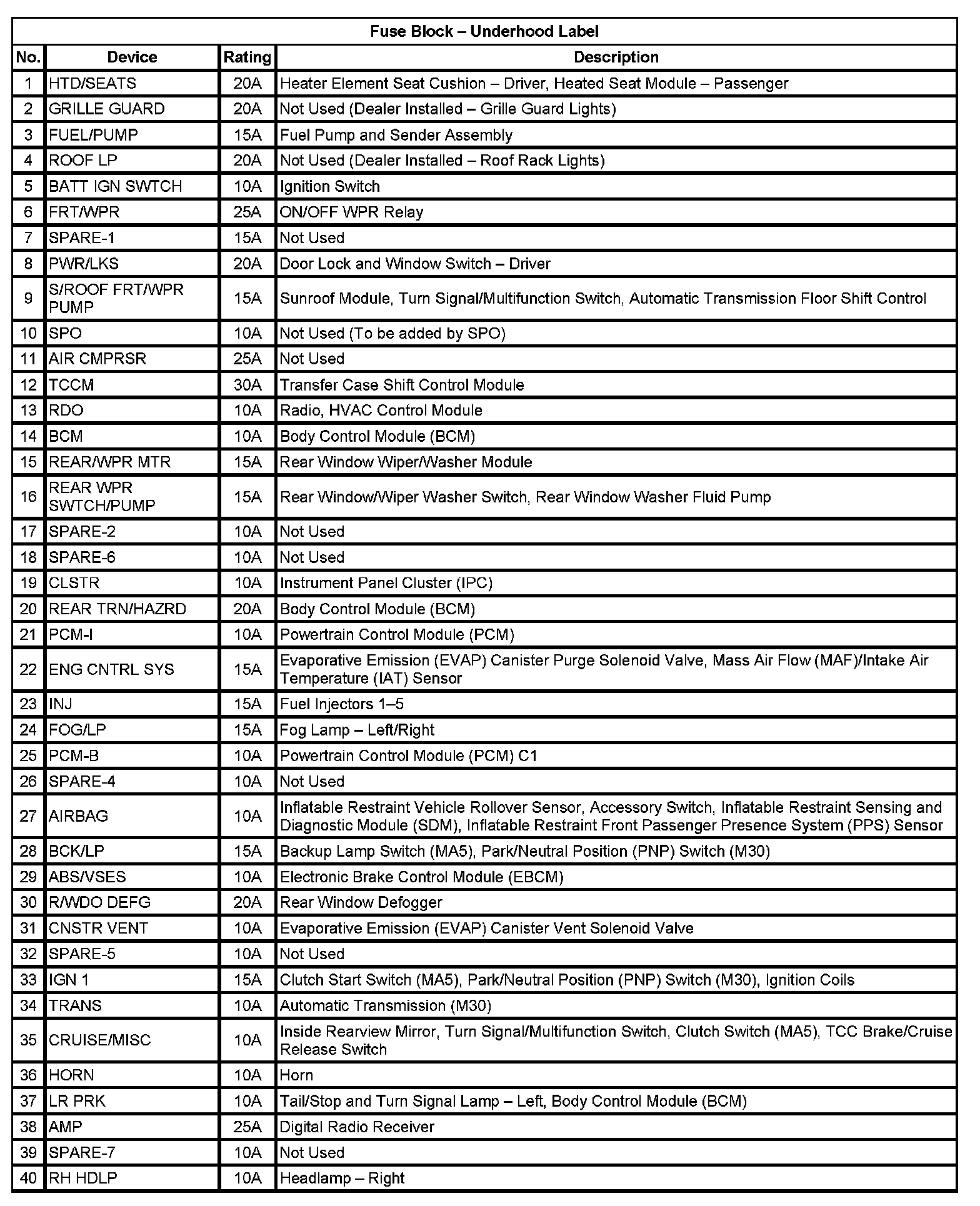

Application Table (Part 1):
Application Table (Part 2):

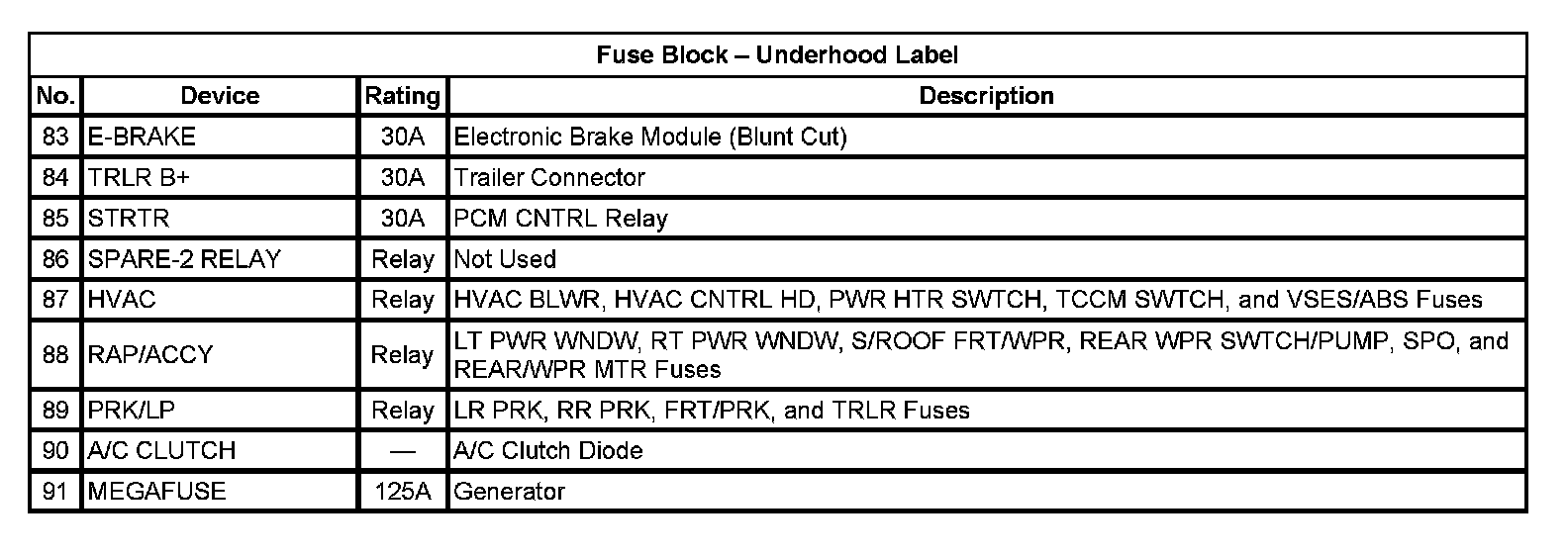

Application Table (Part 3):

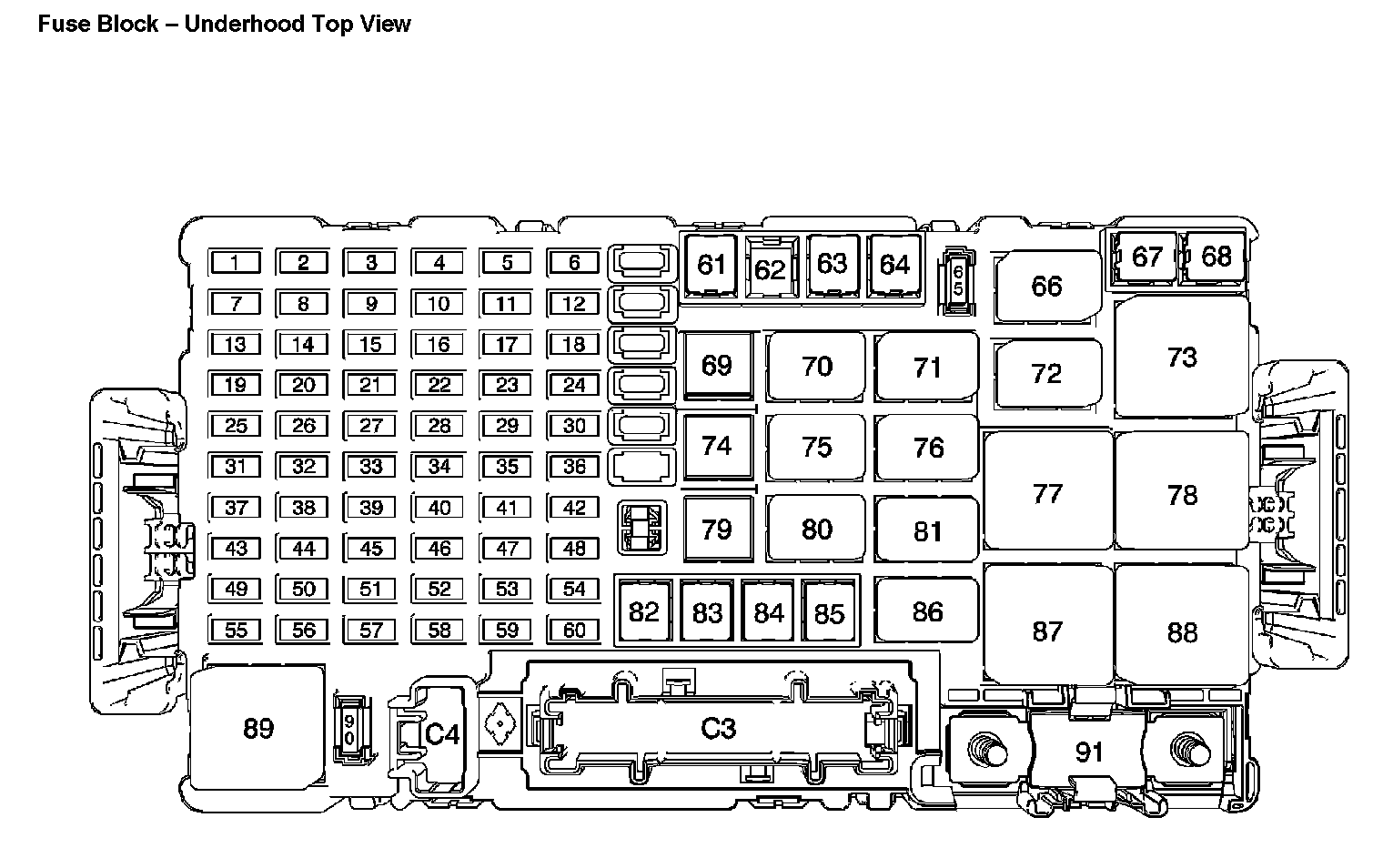

Location View:

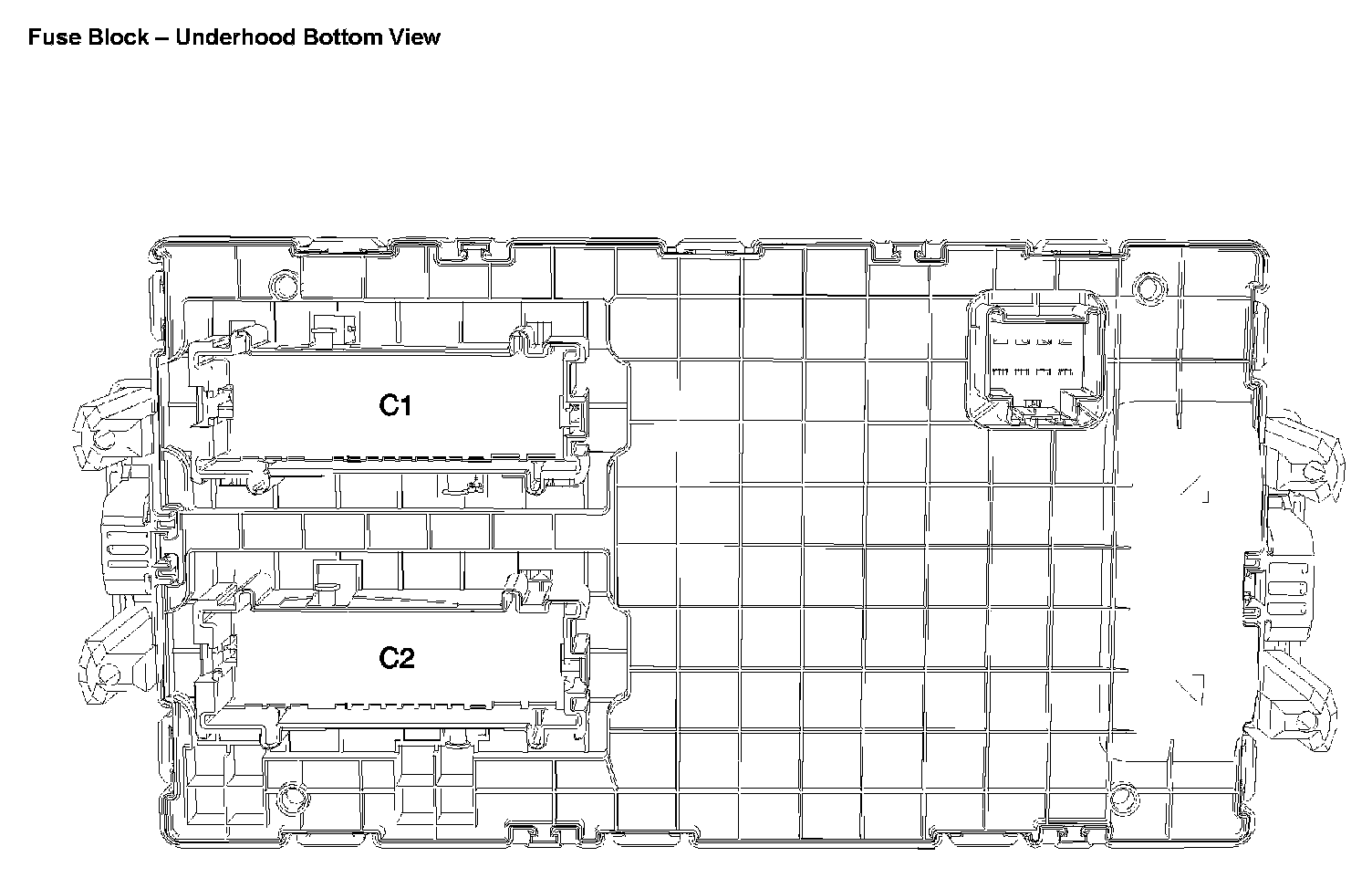

Location View:
