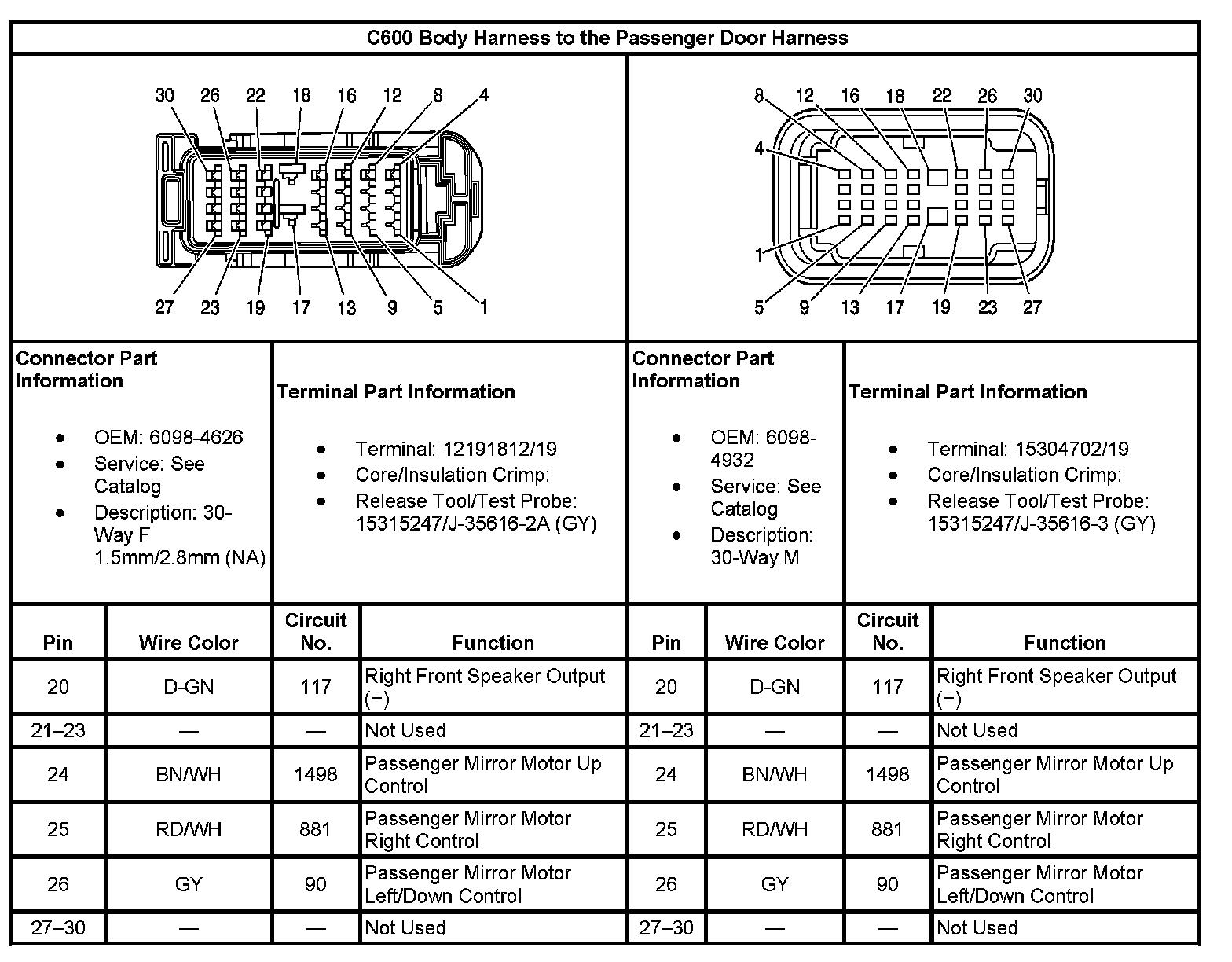

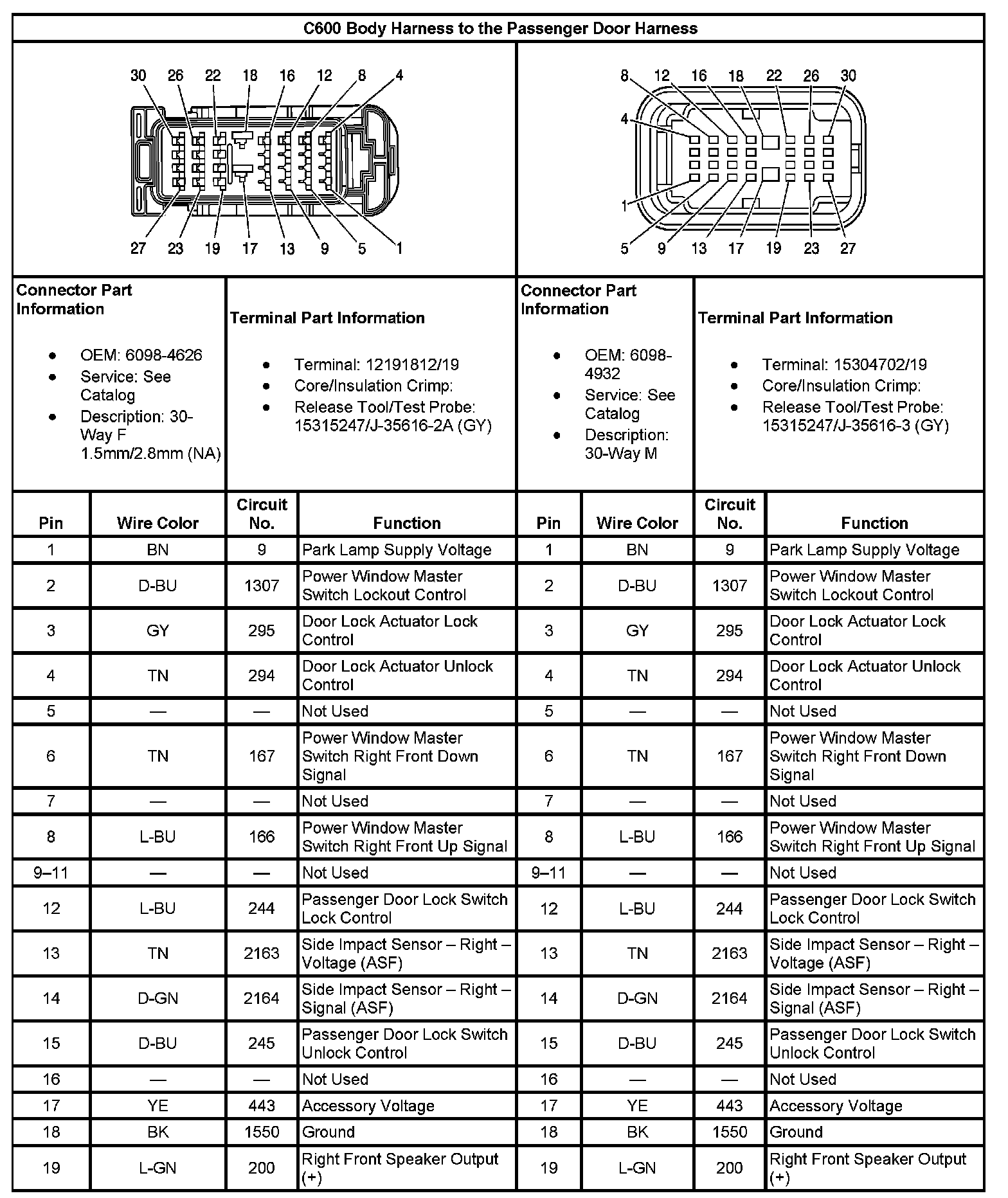

C600 Body Harness To The Passenger Door Harness (Part 1):
C600 Body Harness To The Passenger Door Harness (Part 1):
