C420
C420

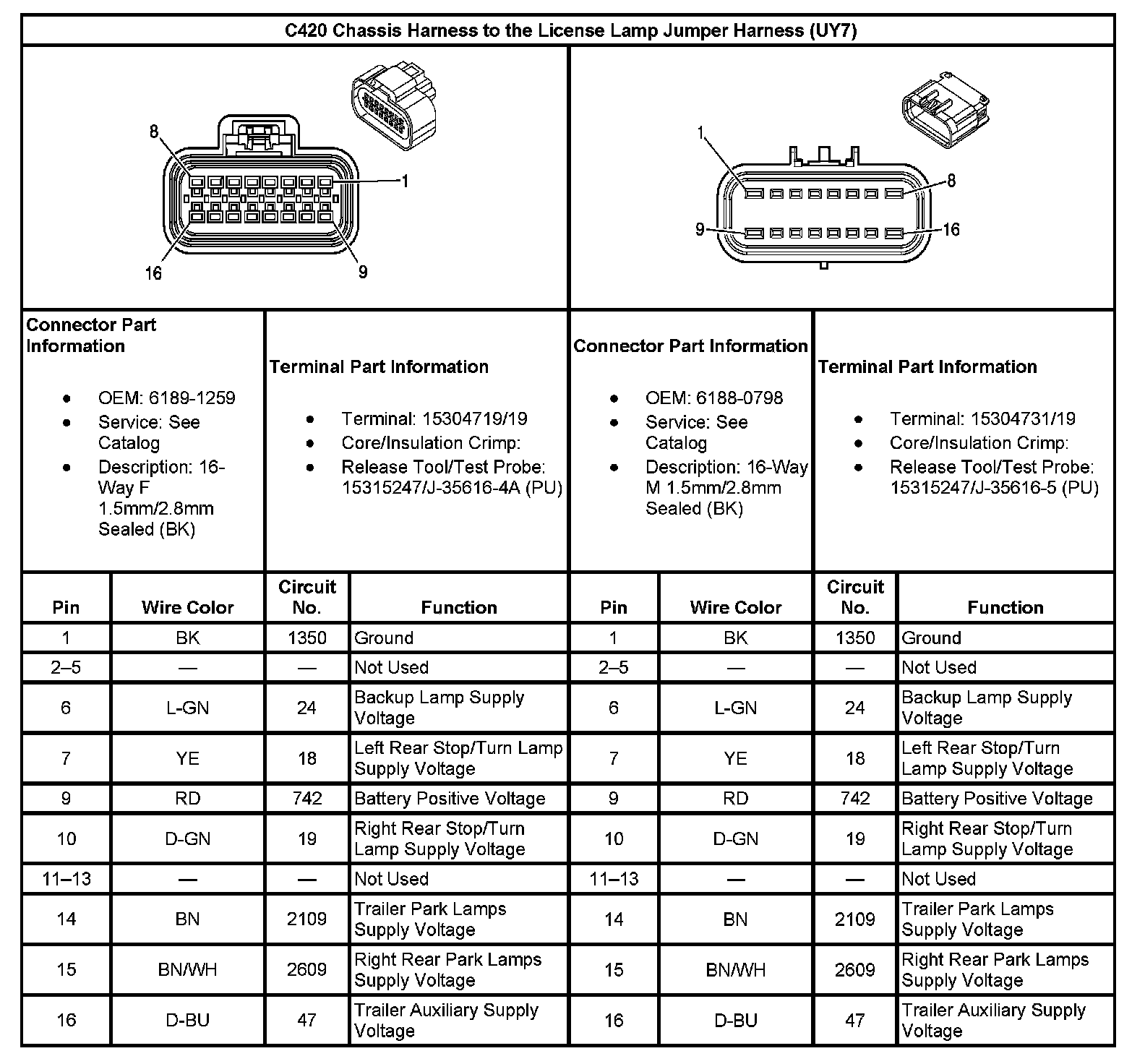

C420 Chassis Harness To The License Lamp Jumper Harness(With RPO Code UY7):

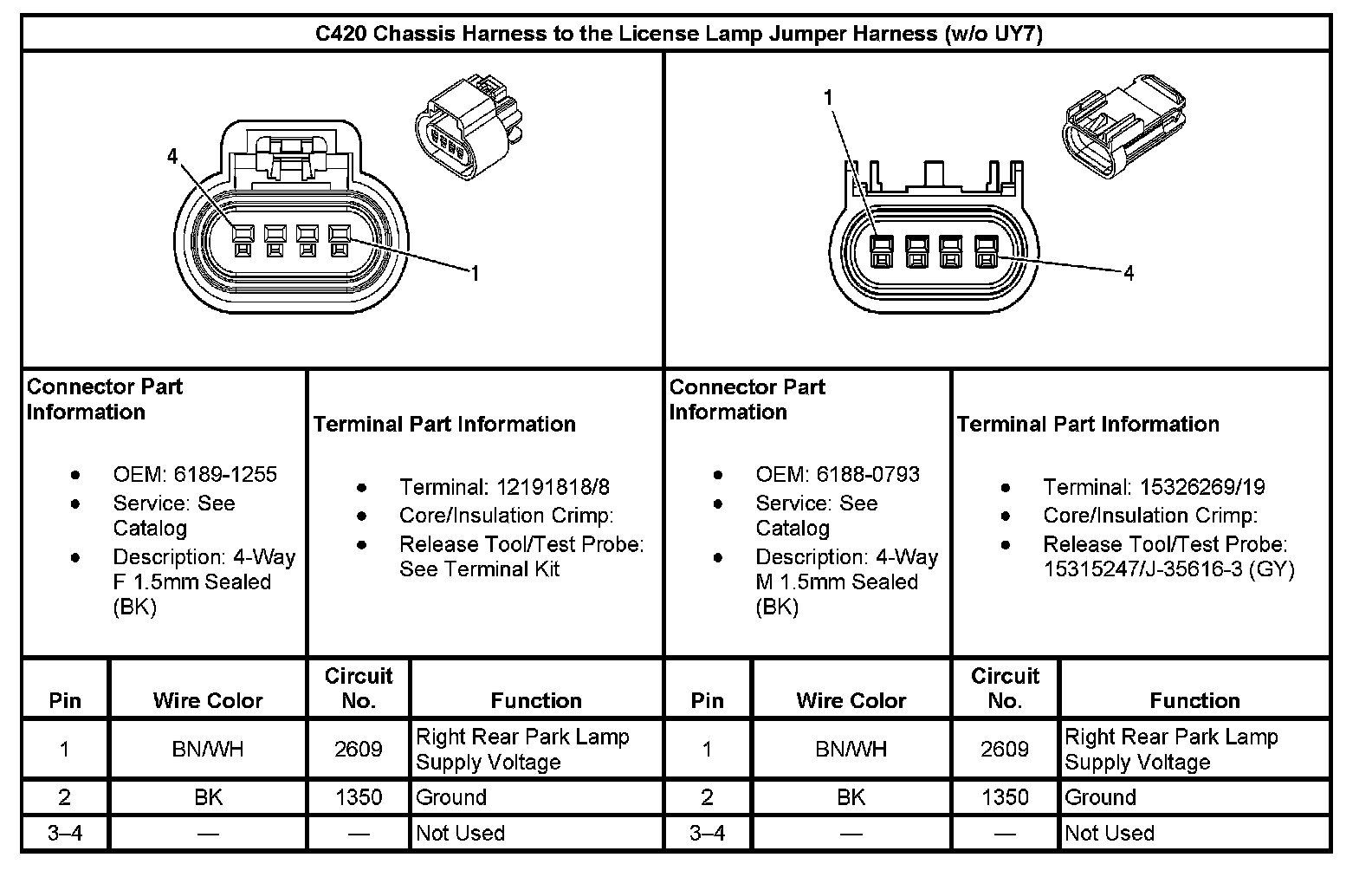

C420 Chassis Harness To The License Lamp Jumper Harness(Without RPO Code UY7):
