Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic

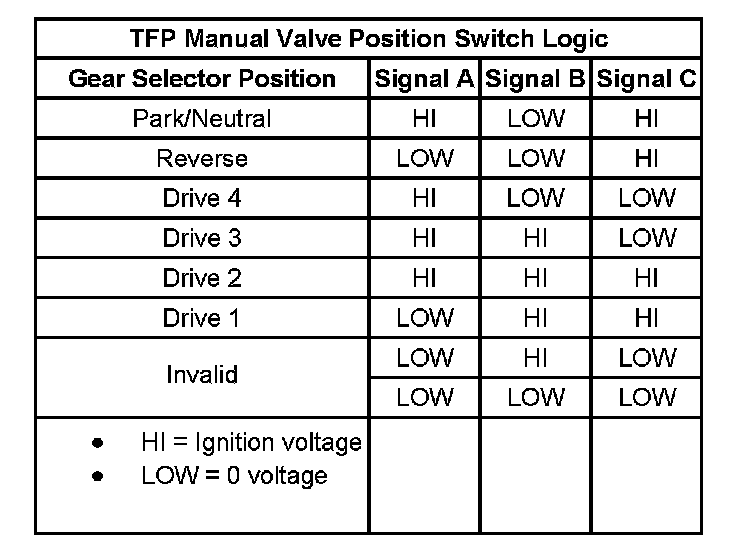

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic:
