Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Yaw Rate Sensor >> Diagrams

Yaw Rate Sensor: Diagrams

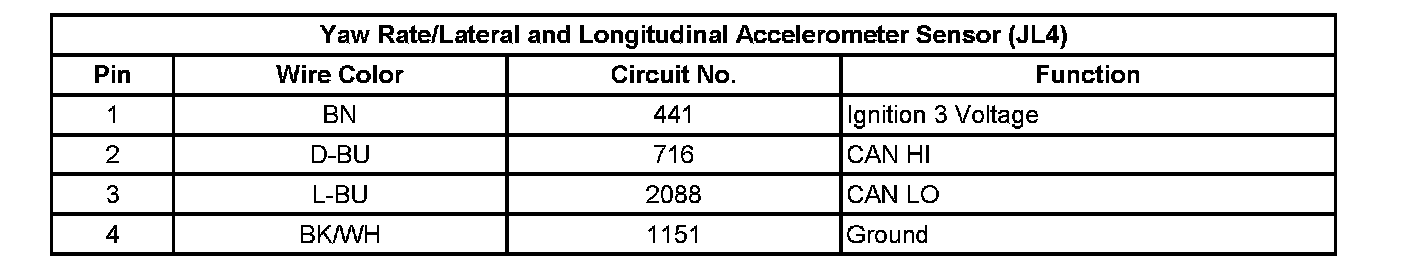

Yaw Rate/Lateral and Longitudinal Accelerometer Sensor(JL4)

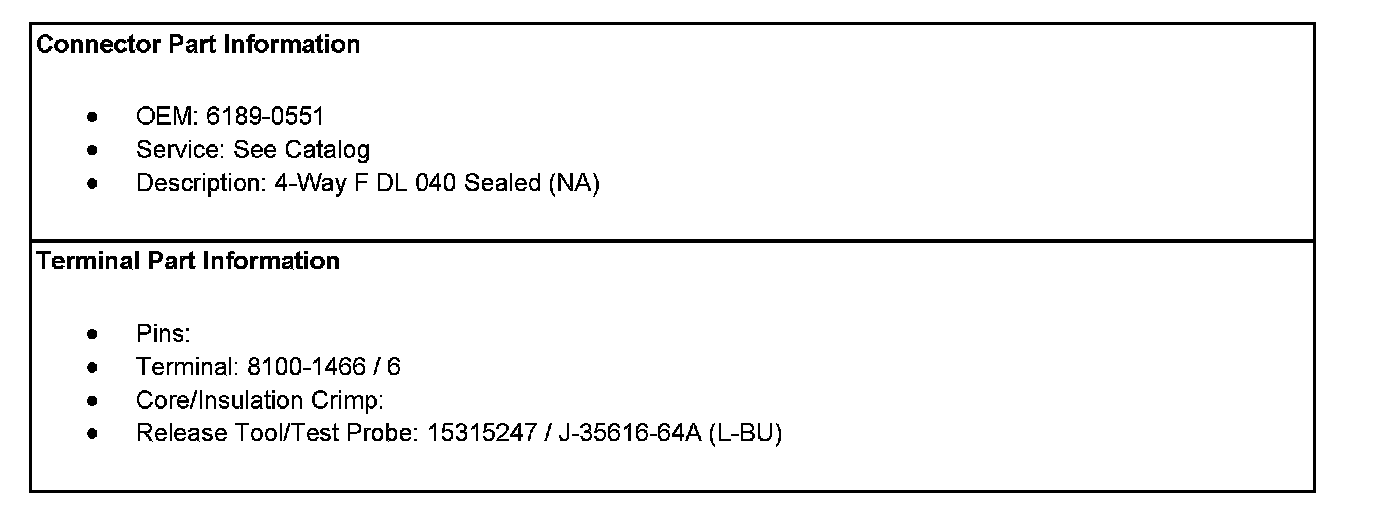

Yaw Rate/Lateral and Longitudinal Accelerometer Sensor (JL4):
