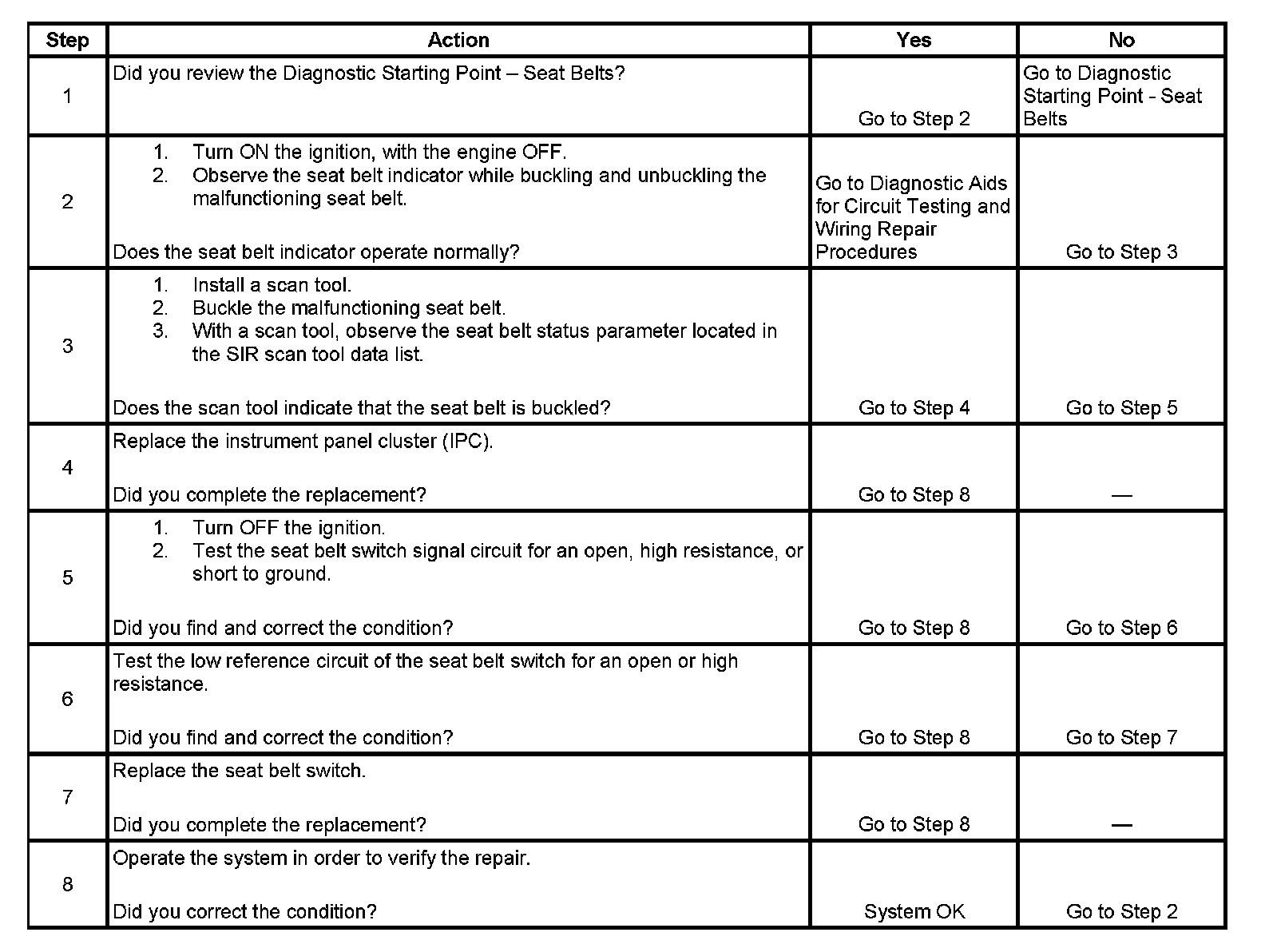

Seat Belt Indicator Circuit Malfunction - Driver
Seat Belt Indicator Circuit Malfunction - Driver
Step 1 - Step 8:
