Steering Wheel Module

INFLATABLE RESTRAINT STEERING WHEEL MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Disable the inflatable restraint steering wheel module. Refer to SIR Disabling and Enabling Zone 3.

CAUTION:
- Refer to SIR Inflator Module Handling and Storage Caution in Service Precautions.
- Refer to SIR Caution in Service Precautions.

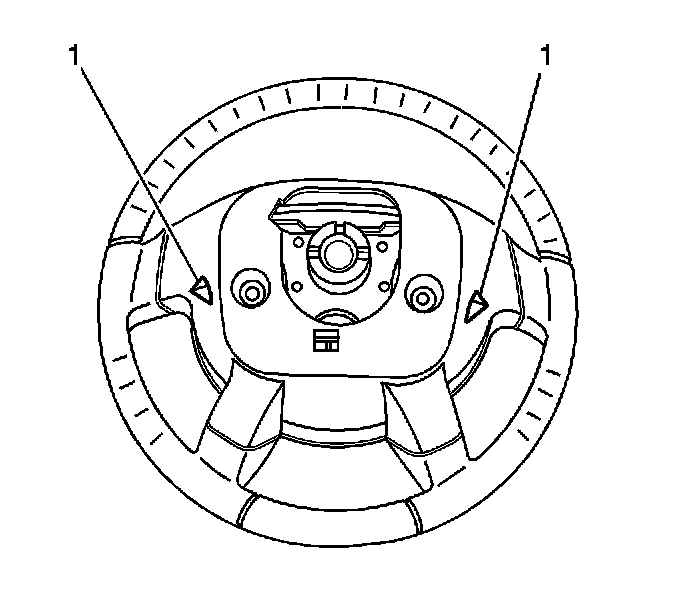

2. Locate the access holes (1) positioned on both sides of the steering wheel shroud.

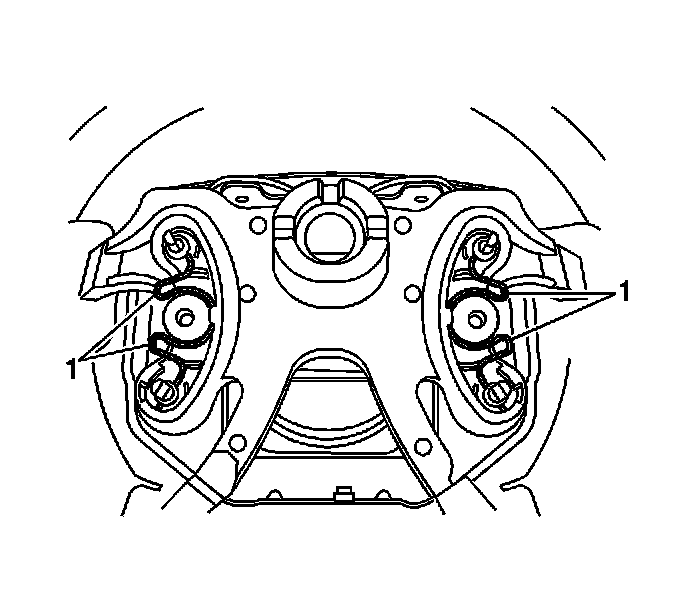

3. Using a blunt-ended tool, push the leaf spring fasteners (1) inward through the access holes.

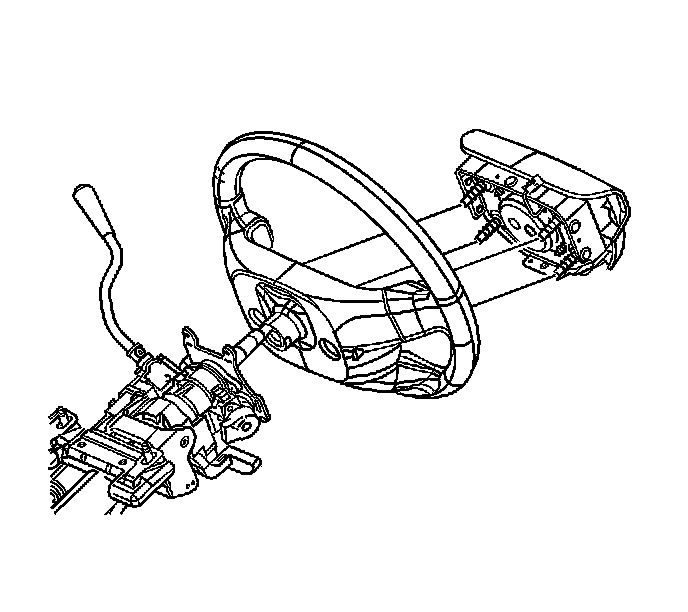

4. Lift and partially remove the inflatable restraint steering wheel module from the steering wheel in order to expose the electrical connectors.
5. Disconnect the electrical connectors (1).
6. Disconnect the horn electrical connector (3).




7. Remove the inflatable restraint module from the steering wheel.

IMPORTANT: Do not attempt to repair the inflatable restraint steering wheel module. The inflatable restraint steering wheel module is replaced only as an assembly.

8. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping.

INSTALLATION PROCEDURE




1. Position the inflatable restraint module to the steering wheel.
2. Connect the electrical connectors (1) to the inflatable restraint steering wheel module.
3. Connect the horn electrical connector (3).




4. Position the 4 alignment posts of the inflatable restraint module to the holes that are located on the steering wheel housing.
5. Push the inflatable restraint module into the steering wheel to engage and latch the leaf spring fasteners (1).
6. After installation, pull up on the sides of the inflatable restraint module to ensure the leaf spring fasteners are engaged.
7. Enable the inflatable restraint steering wheel module. Refer to SIR Disabling and Enabling Zone 3.
