Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Global Positioning System Module >> Locations

Global Positioning System Module: Locations

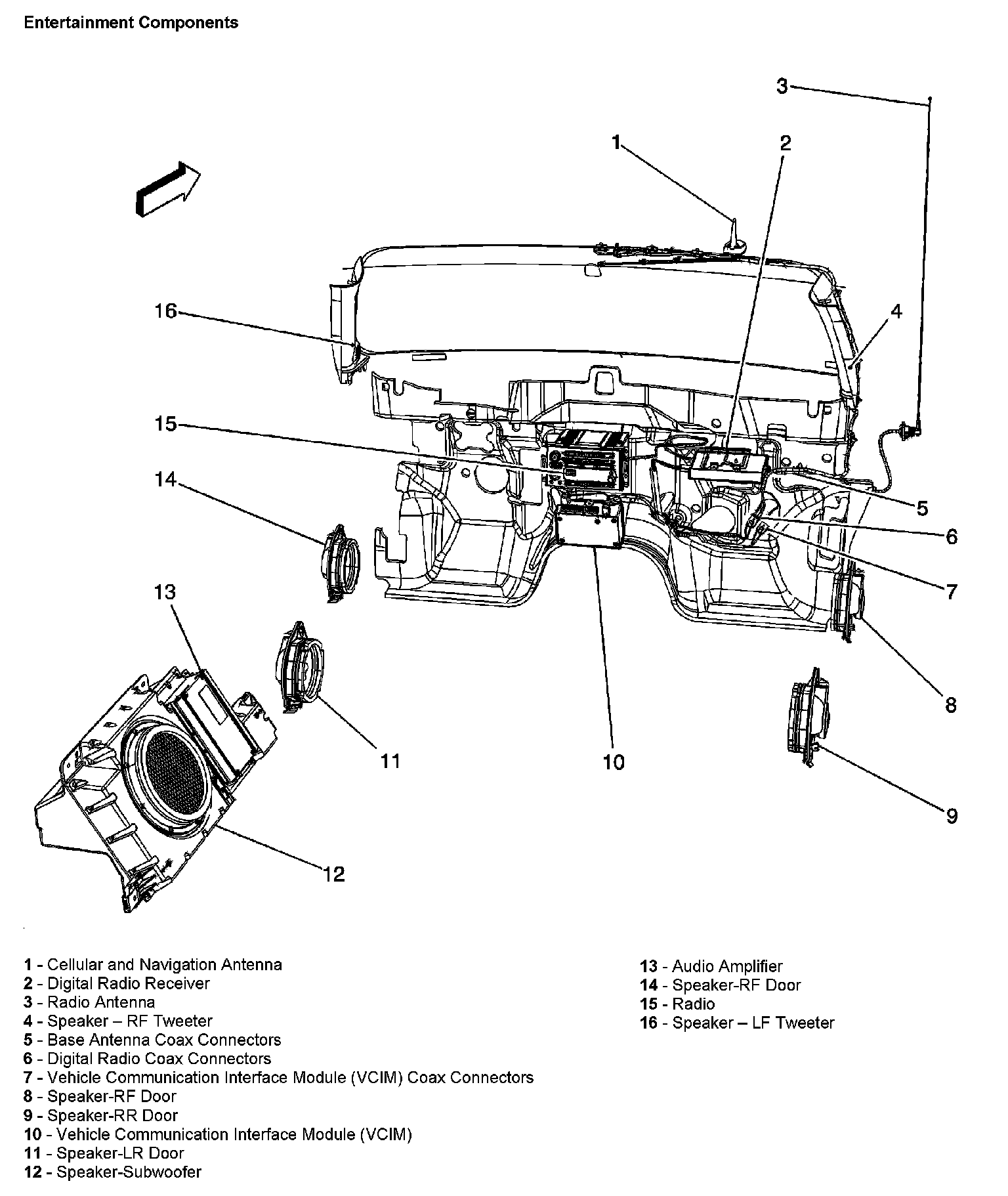

Entertainment Components:

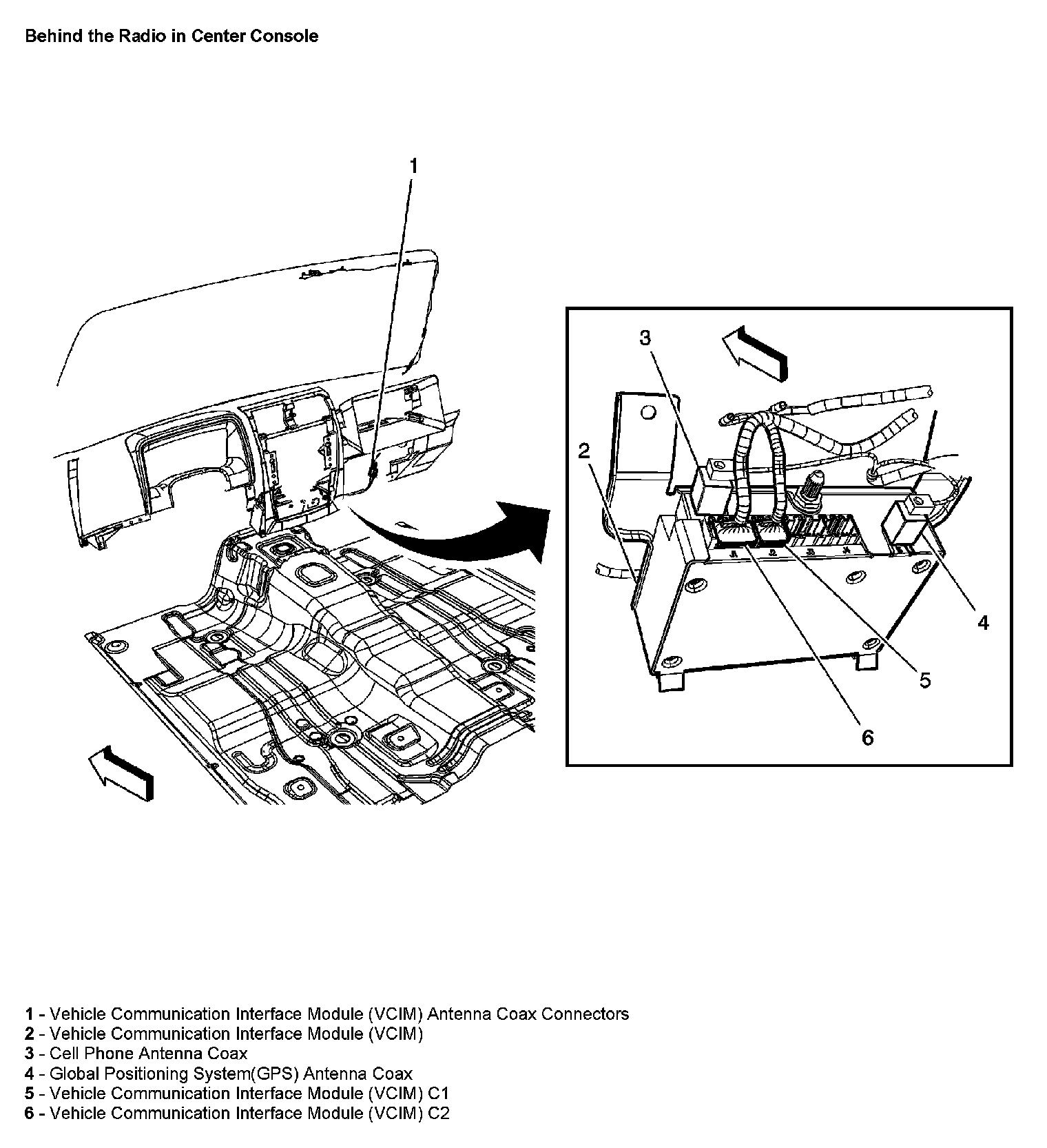

Behind The Radio In Center Console:
